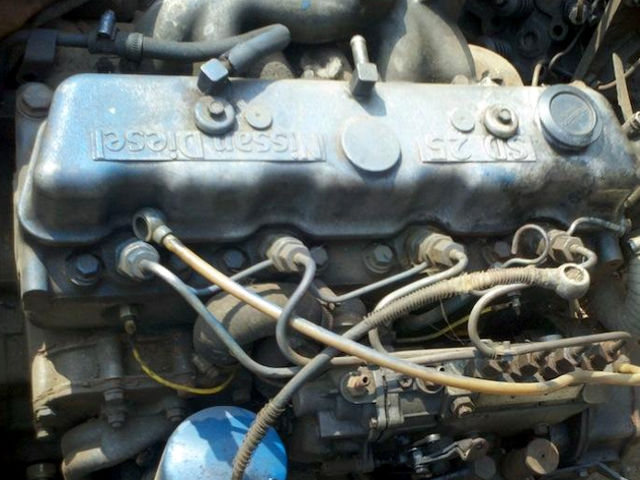

The Nissan SD25 is a 2.5 l (2,488 cc, 151.8 cu-in) straight four, water-cooled diesel engine from the Nissan SD family.
The compression ratio is 20.7:1 and 21.4:1 only for Datsun/Nissan 720 (Non-California) or 21.9:1 (for California) Cylinder bore and the piston stroke is 89.0 mm (3.50 in) and 100.0 mm (3.94 in), respectively.
The Nissan SD25 engine produced 71.0 PS (52.0 KW; 70.0 HP) at 4,000 rpm of horsepower.
The SD25 engine was equipped with Kiki-Bosch in-line fuel or VE fuel injection pump, depending on market and vehicle mode.
The breakdown of the engine code is as follows:
- SD – Engine Family
- 25 – 2.5 Liter Displacement
General information
| Engine Specifications | |
| Engine code | SD25 |
| Layout | Straight-4, vertical |
| Fuel type | Diesel |
| Production | – |
| Displacement | 2.5 L, 2,488 cc (151.8 cu-in) |
| Max. Horsepower | 71.0 PS (52.0 KW; 70.0 HP) at 4,000 rpm |
| Torque output | – |
| Injection pump | Diesel Kiki-Bosch (in-line or VE) |
| Power adder | None |
| Cooling system | Liquid-cooling |
| Firing order | 1-3-4-2 |
| Dimensions (L x H x W): | – |
| Weight | |
Cylinder block
The cylinder block has a monoblock high-strength cast-iron structure with replaceable dry liners. The SD25 engine has five main bearings, a drop-forged steel crankshaft with balance weights, all main and connecting rod bearing surfaces are induction-hardened. Bearings are the precision type, steel-backed tri-metal shell.
The Nissan SD25 motor has an aluminum alloy piston for high strength, lightweight and good heat conductivity; two compression and single oil control ring, they are chrome-plated for long service life. The cylinder bore is 89 mm, piston stroke is 100 mm.
| Cylinder block | ||
| Cylinder block alloy | Cast iron | |
| Compression ratio: | 20.7:1 21.4:1 (only for Datsun/Nissan 720 Pickup, Non-California) 21.9:1 (only for Datsun/Nissan 720 Pickup, California) |
|
| Cylinder bore: | 89.0 mm (3.50 in) | |
| Piston stroke: | 100.0 mm (3.94 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Number of main bearings: | 5 | |
| Block Height: | 268.00 mm (10.55 in) | |
| Cylinder liner inner diameter: | 89.000-89.035 mm (3.5039-3.5053 in) | |
| Piston skirt diameter | 88.895-88.935 mm (3.4998-3.5014 in) | |
| Piston ring side clearance (№1): | 0.060-0.100 mm (0.0024-0.0039 in) | |
| Piston ring side clearance (№2): | 0.040-0.080 mm (0.0016-0.0031 in) | |
| Piston ring side clearance (№3): | 0.020-0.060 mm (0.0008-0.0024 in) | |
| Piston ring end gap (№1): | 0.300-0.450 mm (0.0118-0.0177 in) | |
| Piston ring end gap (№2): | 0.200-0.350 mm (0.0079-0.0138 in) | |
| Piston ring end gap (№3): | 0.150-0.300 mm (0.0059-0.0118 in) | |
| Piston pin outer diameter | 25.993-26.000 mm (1.0233-1.0236 in) | |
| Piston pin bore diameter | 26.025-26.038 mm (1.0246-1.0251 in) | |
| Connecting rod center distance: | 170.0 mm (6.69 in) | |
| Crankshaft journal diameter: | 70.907-70.920 mm (2.7916-2.7921 in) | |
| Crankpin diameter: | 52.913-52.926 mm (2.0832-2.0837 in) | |
| Crankshaft center distance: | 50.00 mm (1.9685 in) | |
Cylinder head
The SD25 has a one-piece high-strength cast iron cylinder head, special cast-iron valve inserts are shrink-fitted. It has high-quality cast iron camshaft, lobes are specially processed to improve hardness and durability.
The engine has OHV design with two valves per cylinder: one intake and exhaust made of special heat-resistant steel. The exhaust valve with a stellite-treated surface. Intake valves are 40 mm in diameter, and the exhaust valves are 34 mm.
| Cylinder head | |
| Cylinder head alloy | Cast iron |
| Valve Arrangement: | OHV |
| Valves: | 8 (2 valves per cylinder) |
| Intake valves diameter: | 40.0 mm (1.575 in) |
| Exhaust valves diameter: | 34.0 mm (1.339 in) |
| Valves length: | 117.0 mm (4.61 in) |
| Intake valve stem diameter: | 7.970-7.985 mm (0.3138-0.3144 in) |
| Exhaust valves stem diameter: | 7.945-7.960 mm (0.3128-0.3134 in) |
| Camshaft journal diameter: |
Front:45.434-45.447 mm (1.7887-1.7892 in) Center:43.897-43.910 mm (1.7282-1.7287 in) Front:41.218-41.231 mm (1.6228-1.6233 in) |
| Cam height: | 37.28-37.32 mm (1.4677-1.4693 in) |
Problems and malfunctions
The SD family of Nissan diesel engines are very reliable, strong, and ask for little in the way of maintenance. The engine uses industry-standard BOSCH injection system components (license-built by Diesel Kiki) and is known worldwide as a reliable, long-lived powerplant.
Maintenance data
| Valve clearance (HOT) | |
| Intake valve | 0.35 mm (0.014 in) |
| Exhaust valve | 0.35 mm (0.014 in) |
| Compression pressure | |
| Standard | 30 kg/cm2 (29.4 bar, 427 psi) / 200 rpm |
| Minimun | 25 kg/cm2 (24.5 bar, 356 psi) / 200 rpm |
| Compression differential limit between cylinders | 3 kg/cm2 (2.9 bar, 43 psi) / 200 rpm |
| Oil system | |
| Recommended engine oil | Semi Synthetic 10W-30 or 10W-40 (“CD” or higher: “CH”, “CI”) |
| Engine oil capacity | 6.5 liters (6.9 US.qts, 5.7 Imp. qts) |
| Fuel system | |
| Injection timing |
Bosch-Kiki in-line: 20 ° B.T.D.C. / 600 rpm Bosch-Kiki VE: 8 ° B.T.D.C. / 600 rpm |
| Idling |
Bosch-Kiki in-line and VE: 550-600 rpm (withuot power steering) 650-750 rpm (wiht power steering) |
| Max engine speed under no load |
Bosch-Kiki in-line: 4200-4400 rpm Bosch-Kiki VE: 4500-4700 rpm |
| Glow plugs | NGK Y-103 |
Tightening torque specs
| Tightening torque specs (engine outer parts) | |
| Water outlet bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Water pump bolt (M8) | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Water pump bolt (M10) | 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb |
| Manifold bolt and nut | 15-18 Nm; 1.5-1.8 kg·m; 11-13 ft·lb |
| Injection pump nut (in-line) | 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb |
| Injection pump nut (VE type) |
Nut: 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb Bolt: 16-22 Nm; 1.6-2.2 kg·m; 12-16 ft·lb |
| Injection nozzle to cylinder head |
Type 1: 59-69 Nm; 6.0-7.0 kg·m; 43-51 ft·lb Type 2: 69-78 Nm; 7.0-8.0 kg·m; 51-58 ft·lb |
| Oil cooler bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Oil cooler pipe nut | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Timing gear cover bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Injection pump timer nut | 59-69 Nm; 6.0-7.0 kg·m; 43-51 ft·lb |
| Injection tube flare nut | 29-34 Nm; 3.0-3.5 kg·m; 22-25 ft·lb |
| Spill tube with cap nut | 39-49 Nm; 4.0-5.0 kg·m; 29-34 ft·lb |
| Oil filter bracket bolt | 26-36 Nm; 2.7-3.7 kg·m; 20-27 ft·lb |
| Alterator bracket bolt | 26-36 Nm; 2.7-3.7 kg·m; 20-27 ft·lb |
| Alterator to adjusting bar bolt | 11-14 Nm; 1.1-1.4 kg·m; 20-27 ft·lb |
| Diesel pump controller bolt | 11-13 Nm; 1.1-1.3 kg·m; 7-9 ft·lb |
| Diesel pump controller bracket bolt | 45-61 Nm; 4.6-6.2 kg·m; 33-45 ft·lb |
| Thermostat housing | 10-131 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Engine internal parts | |
| Main bearing cap bolt | 167-172 Nm; 17.0-17.5 kg·m; 123-127 ft·lb |
| Crank pulley nut | 294-324 Nm; 30-33 kg·m; 217-239 ft·lb |
| Flywheel bolt | 44-49 Nm; 4.5-5.0 kg·m; 33-36 ft·lb |
| Flywheel bolt w/washer | 127-147 Nm; 13-15 kg·m; 94-108 ft·lb |
| Front cover bolt (M6) | 4-6 Nm; 0.4-0.6 kg·m; 2.9-4.3 ft·lb |
| Front cover bolt (M8) | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Front end plate bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Camshaft gear bolt | 44-49 Nm; 4.5-5.0 kg·m; 33-36 ft·lb |
| Oil pump bolt | 13-19 Nm; 1.3-1.9 kg·m; 9-14 ft·lb |
| Oil pan bolt | 7-10 Nm; 0.7-1.0 kg·m; 5.1-7.2 ft·lb |
| Cylinder head bolt |
Sub: 44-54 Nm; 4.5-5.5 kg·m; 33-40 ft·lb Main: 118-127 Nm; 12-13 kg·m; 87-94 ft·lb |
| Rocker arm shaft bolt | 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb |
| Rocker arm lock nut | 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb |
| Camshaft thrust plate bolt | 4-6 Nm; 0.4-0.6 kg·m; 2.9-4.3 ft·lb |
| Connecting rod big end nut | 51-56 Nm; 5.2-5.7 kg·m; 38-41 ft·lb |
| Rocker cover bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
| Oil jet (for piston) | 29-39 Nm; 3.0-4.0 kg·m; 22-29 ft·lb |
Type 1: Part № of injection nozzle: 16600-90060; 16600-36W00; 16600-T9000
Type 2: Part № of injection nozzle: 16600-37502; 16600-90012; 16600-90019; 16600-J5571; 16600-T3401; 16600-T3470; 16600-T6200; 16600-T6201; 16600-Y8400; 16600-Y8401
Vehicle applications
| Model | Years Produced |
| Nissan 720 | 1983-1986 |
| Nissan D21 Pickup | 1986-1988 |
| Nissan Urvan | – |
| Nissan Cabstar H40 | – |
| Nissan Atlas F22 | – |
| Nissan Civilian W40 | – |
