Hatz engines

Engine Displacement Bore & Stroke Power output (max.) Net Torque
B SERIES
1B20 243 cc
(14.83 cu·in)
69.0 x 65.0 mm (2.72 x 2.56 in) 4.7 HP at 3,600 rpm 10.5 Hm at 2,500 rpm
1B20V 243 cc
(14.83 cu·in)
69.0 x 65.0 mm (2.72 x 2.56 in) 4.7 HP at 3,600 rpm 10.5 Hm at 2,500 rpm
1B27 280 cc
(17.09 cu·in)
74.0 x 65.0 mm (2.91 x 2.56 in) 5.4 HP at 3,600 rpm 12.5 Hm at 2,300 rpm
1B30 347 cc
(21.18 cu·in)
80.0 x 69.0 mm (3.15 x 2.72 in) 7.2 HP at 3,600 rpm 17.5 Hm at 2,300 rpm

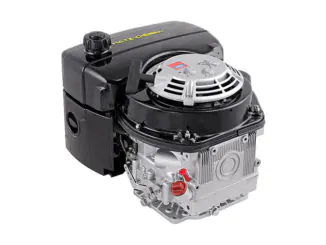

1B30V 347 cc
(21.18 cu·in)
80.0 x 69.0 mm (3.15 x 2.72 in) 7.2 HP at 3,600 rpm 17.5 Hm at 2,300 rpm

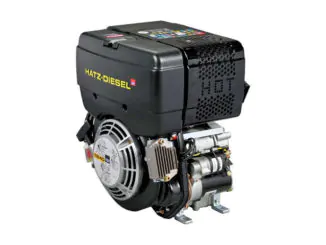

1B40 462 cc
(28.19 cu·in)
88.0 x 76.0 mm (3.46 x 2.99 in) 10.1 HP at 3,600 rpm 24.9 Hm at 2,300 rpm
1B40V 462 cc
(28.19 cu·in)
88.0 x 76.0 mm (3.46 x 2.99 in) 10.1 HP at 3,600 rpm 24.9 Hm at 2,300 rpm

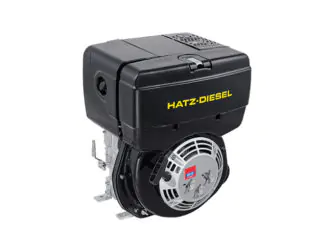

1B50 517 cc
(31.5 cu·in)
93.0 x 76.0 mm (3.66 x 2.99 in) 11.4 HP at 3,600 rpm 27.4 Hm at 2,500 rpm

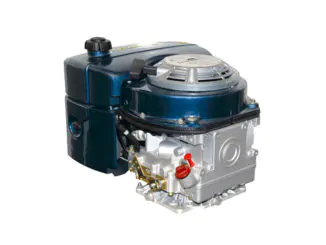

1B50V 517 cc
(31.5 cu·in)
93.0 x 76.0 mm (3.66 x 2.99 in) 11.4 HP at 3,600 rpm 27.4 Hm at 2,500 rpm
