List of small gasoline and diesel Kama engines which are produced by Chinese company WUXI WORLDBEST KAMA POWER CO., LTD., for general-purpose applications such as pressure generators or water pumps.
Engine | Displacement | Power output (max.) | Bore & Stroke | |||
GASOLINE ENGINES | ||||||
KG160 | 163 cc (9.95 cu.in.) | 4.5 HP at 2,500 rpm | 68 x 45 mm (2.68 x 1.77 in.) | |||
KG200 | 196 cc (11.96 cu.in.) | 5.5 HP at 2,500 rpm | 68 x 54 mm (2.68 x 2.12 in.) | |||
KG270 | 270 cc (16.48 cu.in.) | 7.5 HP at 3,600 rpm | 77 x 58 mm (3.03 x 2.28 in.) | |||
KG390 | 289 cc (23.74 cu.in.) | 10.5 HP at 3,600 rpm | 88 x 64 mm (3.46 x 2.52 in.) | |||
DIESEL ENGINES | ||||||
KM170FX | 196 cc (11.96 cu.in.) | 3.3 HP at 3,000 rpm | 68 x 54 mm (2.64 x 2.13 in.) | |||
KM170FAX | 208 cc (12.70 cu.in.) | 3.8 HP at 3,000 rpm | 70 x 54 mm (2.79 x 2.13 in.) | |||
KM170FAXL | 208 cc (12.70 cu.in.) | 3.8 HP at 3,000 rpm | 70 x 54 mm (2.79 x 2.13 in.) | |||
KM170FS/E | 211 cc (12.88 cu.in.) | 4.2 HP at 1,800 rpm | 70 x 55 mm (2.79 x 2.17 in.) | |||
KM170F | 211 cc (12.88 cu.in.) | 4.2 HP at 3,600 rpm | 70 x 55 mm (2.79 x 2.17 in.) | |||
KM170F/E | 211 cc (12.88 cu.in.) | 4.2 HP at 3,600 rpm | 70 x 55 mm (2.79 x 2.17 in.) | |||
KM170FB/E | 226 cc (13.80 cu.in.) | 4.8 HP at 3,600 rpm | 70 x 59 mm (2.79 x 2.32 in.) | |||
KM173F/E | 250 cc (15.25 cu.in.) | 5.5 HP at 3,600 rpm | 73 x 59 mm (2.87 x 2.32 in.) | |||
KM173FS/E | 250 cc (15.25 cu.in.) | 5.5 HP at 1,800 rpm | 73 x 59 mm (2.87 x 2.32 in.) | |||

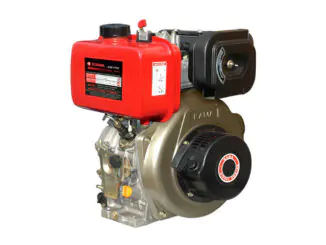

KM178F | 296 cc (18.06 cu.in.) | 6.0 HP at 3,600 rpm | 78 x 62 mm (3.07 x 2.44 in.) | |||
KM178F/E | 296 cc (18.06 cu.in.) | 6.0 HP at 3,600 rpm | 78 x 62 mm (3.07 x 2.44 in.) | |||
KM178FS/E | 296 cc (18.06 cu.in.) | 6.0 HP at 1,800 rpm | 78 x 62 mm (3.07 x 2.44 in.) | |||

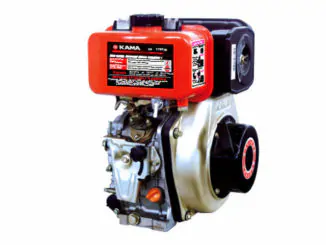

KM186F/E | 406 cc (24.78 cu.in.) | 9.0 HP at 3,600 rpm | 86 x 70 mm (3.39 x 2.76 in.) | |||
KM186FS/E | 406 cc (24.78 cu.in.) | 9.0 HP at 1,800 rpm | 86 x 70 mm (3.39 x 2.76 in.) | |||
KM186FA/E | 418 cc (25.5 cu.in.) | 10.0 HP at 3,600 rpm | 86 x 72 mm (3.39 x 2.83 in.) | |||
KM186FAS/E | 418 cc (25.5 cu.in.) | 10.0 HP at 1,800 rpm | 86 x 72 mm (3.39 x 2.83 in.) | |||
KM188F/E | 456 cc (27.82 cu.in.) | 7.5 HP at 3,600 rpm | 88 x 75 mm (3.48 x 2.95 in.) | |||
KM192F | 499 cc (30.46 cu.in.) | 10.5 HP at 1,800 rpm | 92 x 75 mm (3.62 x 2.95 in.) | |||
KM192FS | 499 cc (30.46 cu.in.) | 10.5 HP at 3,600 rpm | 92 x 75 mm (3.62 x 2.95 in.) | |||
KM12DL-500F/E | 505 cc (30.82 cu.in.) | 10.2 HP at 3,600 rpm | 87 x 85 mm (3.43 x 3.35 in.) | |||
KM195F/E | 532 cc (32.5 cu.in.) | 12.5 HP at 3,600 rpm | 95 x 75 mm (3.74 x 2.95 in.) | |||

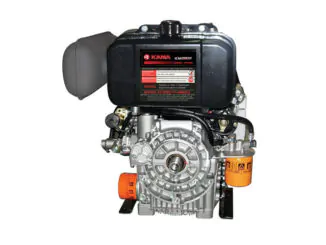

KM290FE | 954 cc (58.22 cu.in.) | 14.0 HP at 3,600 rpm | 90 x 75 mm (3.54 x 2.95 in.) | |||
KM375FE | 1,028 cc (67.72 cu.in.) | 22.5 HP at 3,000 rpm | 75 x 77.6 mm (2.95 x 3.06 in.) | |||

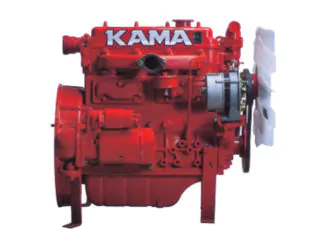

KM380 | 1,357 cc (82.80 cu.in.) | 28.6 HP at 3,000 rpm | 80 x 90 mm (3.15 x 3.54 in.) | |||

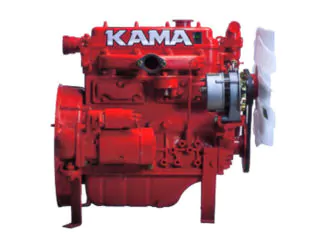

KM480 | 1,809 cc (110.38 cu.in.) | 39.4 HP at 3,000 rpm | 80 x 90 mm (3.15 x 3.54 in.) |
