Shibaura engines

Engine Displacement Bore & Stroke Power output (max.) Net Torque
Two cylinders
LEK752C 706 cc
(43.1 cu.in.)
75.0 x 80.0 mm
(2.95 x 3.15 in.)
13.0 HP at 2,600 rpm 36.2 Nm at 2,000 rpm
LEK752C2 706 cc
(43.1 cu.in.)
75.0 x 80.0 mm
(2.95 x 3.15 in.)
13.0 HP at 2,600 rpm
LEK802D 804 cc
(49.1 cu.in.)
80.0 x 80.0 mm
(3.15 x 3.15 in.)
16.0 HP at 2,700 rpm
LET862C 1,134 cc
(69.2 cu.in.)
85.0 x 100.0 mm
(3.35 x 3.94 in.)
19.8 HP at 2,500 rpm
LE892 1,272 cc
(77.7 cu.in.)
90.0 x 100.0 mm
(3.54 x 3.94 in.)
25.0 HP at 2,500 rpm
Three cylinders
S723 879 cc
(53.6 cu.in.)
72.0 x 72.0 mm
(2.83 x 2.83 in.)
14.0 HP at 2,500 rpm
16.0 HP at 2,700 rpm
48.8 Nm at 1,800 rpm

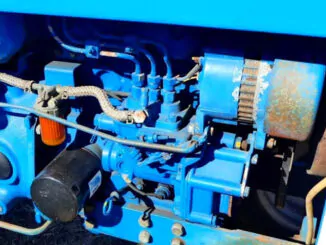

K773 1,117 cc
(68.2 cu.in.)
77.0 x 80.0 mm
(3.03 x 3.15 in.)
22.0 HP at 2,800 rpm 58.3 Nm at 1,600 rpm

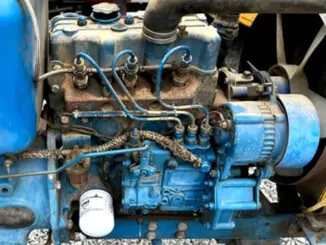

H843 1,396 cc
(85.2 cu.in.)
84.0 x 84.0 mm
(3.31 x 3.31 in.)
26.0 HP at 2,700 rpm 75.5 Nm at 1,500 rpm

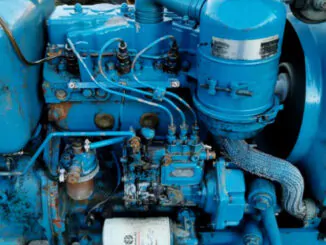

LEM853 1,429 cc
(87.2 cu.in.)
85.0 x 84.0 mm
(3.35 x 3.31 in.)
30.0 HP at 2,800 rpm
T853A 1,702 cc
(103.8 cu.in.)
85.0 x 100.0 mm
(3.35 x 3.94 in.)
32.0 HP at 2,500 rpm 96.1 Nm at 2,000 rpm
Four cylinders

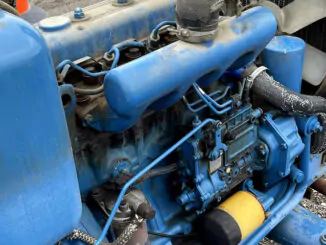

T854B 2,268 cc
(138.4 cu.in.)
85.0 x 100.0 mm
(3.35 x 3.94 in.)
38.0 HP at 2,500 rpm 121.4 Nm at 2,000 rpm
