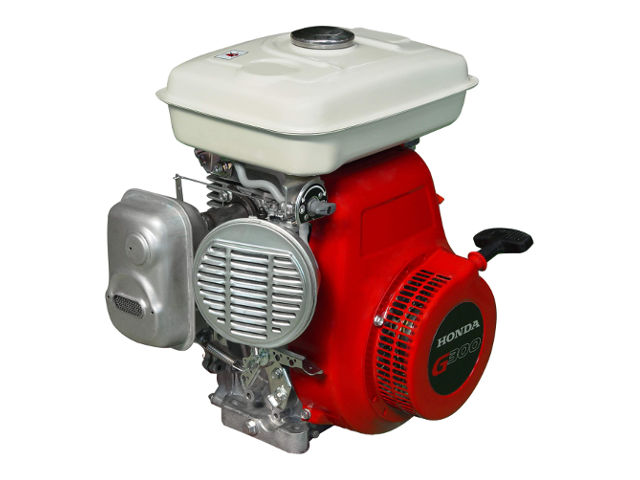

The Honda G300 is a 272 cc (16.6 cu.in.) single-cylinder, air-cooled, four-stroke internal combustion small gasoline engine manufactured by Honda Motor Company since 1978 for general-purpose applications.
The Honda G300 engine has a slide valve (L-head) design and camshaft driven by a single row chain driven by the crankshaft. The engine has an electric or recoil starter, horizontal carburetor with butterfly valve and transistorized magneto or contact point breaker (CDI) ignition system.
Cylinder bore and piston stroke are 76.0 mm (3.0 in) and 60.0 mm (2.4 in), respectively. The compression ratio is 6.5:1. The G300 produced 7.1 PS (5.22 KW; 7.0 HP) at 3,600 rpm of maximum horsepower and torque was 14.7 Nm (1.5 kg·m; 10.8 lbf·ft) at 3,600 rpm. The dry weight of the Honda G300 with electric starter engine was 25.0 kg (55.1 lbs.), with recoil starter 22.0 kg (49.0 lbs)
General information
| Engine Specifications | |
| Model | G300 |
| Type | 4-stroke, side valve type (L-head), single cylinder |
| Displacement | 272 cm 3 (16.6 cu-in) |
| Max. horsepower | 7.1 PS (5.22 KW; 7.0 HP) at 3,600 rpm |
| Max. torque | 14.7 Nm (1.5 kg·m; 10.8 lbf·ft) at 3,600 rpm |
| Carburetor | Horizontal, butterfly valve |
| Cooling system | Forced-air |
| Ignition system | Transistorized magneto or CDI |
| Lubricating system | Splash type |
| Starting system | Recoil or electric starter |
| Stoping system | Ground switch |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel tank capacity | 6.0 liters (6.3 US.qts, 5.3 Imp. qts) |
| Fuel consumption | 285 g/HPh |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Cylinder Block and Head
| Cylinder block | ||
| Compression ratio: | 6.5:1 | |
| Bore x Stroke | 76 X 60 mm (3.0 x 2.4 in) | |
| Sleeve internal diameter | 76.000-76.017 mm (2.9921-2.9928 in) | |
| Piston skirt outer diameter | 75.97-76.00 mm (2.991-2.992 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Piston ring side clearance (Top): | 0.020-0.060 mm (0.0008-0.0024 in) | |
| Piston ring side clearance (Second): | 0.010-0.050 mm (0.0004-0.0020 in) | |
| Piston ring side clearance (Oil): | 0.010-0.050 mm (0.0004-0.0020 in) | |
| Piston ring end gap (Top): | 0.200-0.400 mm (0.008-0.016 in) | |
| Piston ring end gap (Second): | 0.200-0.400 mm (0.008-0.016 in) | |
| Piston ring end gap (Oil): | 0.200-0.400 mm (0.008-0.016 in) | |
| Ring width (Top): | 1.970-1.990 mm (0.0776-0.783 in) | |
| Ring width (Second): | 1.970-1.990 mm (0.0776-0.783 in) | |
| Ring width (Oil): | 3.970-3.990 mm (0.1563-0.1571 in) | |
| Connecting rod small end ID | 16.005-16.020 mm (0.6301-0.6307 in) | |
| Crankpin outer diameter | 29.943-29.959 mm (1.1789-1.1795 in) | |
| Cylinder Head | ||
| Warpage (limit) | 0.10 mm (0.004 in) | |
| Valve Arrangement: | Side valve type | |
| Valves: | 2 | |
| Valve stem outer diameter (INTAKE): | 6.955-6.970 mm (0.2738-0.2744 in) | |
| Valve stem outer diameter (EXHAUST): | 6.910-6.925 mm (0.2720-0.2726 in) | |
| Valve guide inner diameter (INTAKE): | 7.000-7.015 mm (0.2756-0.2762 in) | |
| Valve guide inner diameter (EXHAUST): | 7.000-7.015 mm (0.2756-0.2762 in) | |
| Spring free length | 42.7 mm (1.6811 in) | |
| Camshaft cam height (INTAKE): | 38.460-38.720 mm (1.5142-1.5244 in) | |
| Camshaft cam height (EXHAUST): | 38.490-38.750 mm (1.5154-1.5256 in) | |
Maintenance data
| Engine | |
| Idle speed | 1,400 ± 150 rpm |
| Cylinder compression | 5.3 kg/cm2 (75 psi) |
| Adjust timing ignition | |
| Ignition timing |
20° B.T.D.C. – for magneto ignition The CDI type does not require adjustment. |
| Adjust valve clearance | |
| Intake valve | 0.08-0.16 ± 0.02 (0.0031-0.0063 in) |
| Exhaust valve | 0.11-0.19 ± 0.02 (0.0043-0.0075 in) |
| Oil system | |
| Oil type | Honda 4-stroke “SE” |
| Recommended oil | 10W-40 |
| Oil capacity | 1.2 liters (1.27 US.qts, 1.06 Imp. qts) |
| Carburetor | |
| Main jet | #88 |
| Float height | 8.2 mm (0.32 in) |
| Ignition system | |
| Spark plug |
NGK: B4H, BR4HS for magneto ignition NGK: BP4HS-10, BPR4HS-10 for CDI ignition |
| Spark plug gap |
0.6-0.7 mm (0.024-0.028 in), for magneto ignition 0.9-0.10 mm (0.035-0.039 in), for CDI ignition |
Tightening torque specs
| Tightening torque specs | |
| Fuel valve (12 mm) | 12-15 Nm; 1.2-1.5 kg·m; 8.7-10.8 ft·lb |
| Flywheel (16 mm) | 110-120 Nm; 11.0-12.0 kg·m; 80-87 ft·lb |
| Cylinder head | 24-26 Nm; 2.4-2.6 kg·m; 17-19 ft·lb |
| Tappet cover (6 mm) | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Crankcase cover (8 mm) | 20-24 Nm; 2.0-2.4 kg·m; 15-17 ft·lb |
| Connecting rod | 12.6-15.4 Nm; 1.26-1.54 kg·m; 9.1-11 ft·lb |
| Fuel tank (8 mm) | 20-28 Nm; 2.0-2.8 kg·m; 15-20 ft·lb |
| Oil drain plug | 15-25 Nm; 1.5-2.5 kg·m; 11-18 ft·lb |
| Others | |
| 5 mm bolts, nuts | 4-7 Nm; 0.4-0.7 kg·m; 2.9-5.1 ft·lb |
| 6 mm bolts, nuts | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| 8 mm bolts, nuts | 20-28 Nm; 2.0-2.8 kg·m; 14.5-20.3 ft·lb |
| 10 mm bolts, nuts | 35-40 Nm; 3.5-4.0 kg·m; 25-29 ft·lb |
