Honda GXV670

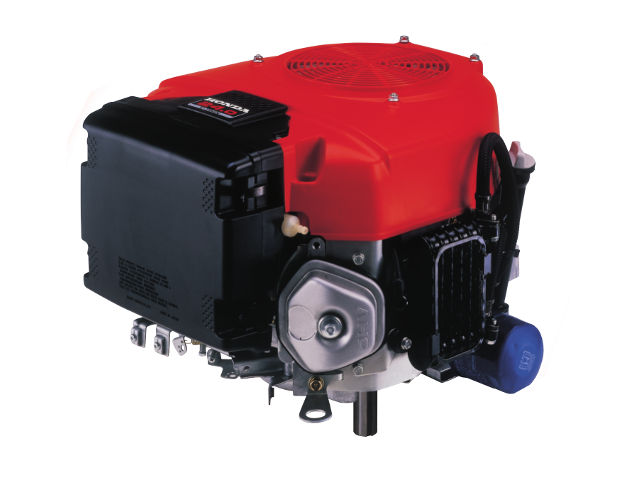

Honda GXV670 engineThe Honda GXV670 is a 670 cc (40.9 cu-in) V-twin cylinder air-cooled four-stroke internal combustion small gasoline engine with vertical shaft manufactured by Honda Motor Company for general-purpose applications, such as riding mowers and lawn tractors, construction equipment and other professional heavy-duty applications.

The Honda GXV670 engine has an OHV (overhead valve) design with 90° V-twin cylinders; horizontal type carburetor with butterfly valve; electric starter and transistorized magneto ignition system.

The 90° V-twin OHV format featuring an advanced combustion chamber design and superior intake and exhaust efficiency combines the ordinarily opposed elements of good fuel economy and high power output at the highest possible levels. An advanced breather design and three-piece oil ring improve oil circulation efficiency for lower oil consumption. The result is excellent reliability plus reduced running and maintenance costs.

The cylinder bore is 77.0 mm (3.0 in) and the piston stroke is 72.0 mm (2.8 in), compression ratio rating is 8.3:1. The GX670 engine produced 24 HP (17.7 kW HP) of horsepower at 3,600 rpm and 50.8 N·m (5.18 kg·m, 37.5 ft·lb) of torque at 2,500 rpm.

General information

Engine Specifications
Model GXV670
Type 4-stroke, OHV, 90° V-twin
Displacement 670 cm 3 (40.9 cu-in)
Max. horsepower 24 HP (17.7 kW HP) at 3,600 rpm
Max. torque (crank PTO) 50.8 N·m (5.18 kg·m, 37.5 ft·lb) at 2,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Forced lubrication
Starting system Electric starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel consumption 265 g/HPh
PTO shaft rotation Counterclockwise (from PTO shaft side)

Cylinder Block and Head

Improved crankcase rigidity, extra-durable crankshaft, and optimized cam shape reduce mechanical noise and contribute to quieter, smoother continuous operation. The Honda GXV670 motor equipped with high-strength sintered aluminum connecting rods to reduce weight in overlap areas and minimize vibration caused by the cylinder offset.

Cylinder block
Compression ratio: 8.3:1
Bore x Stroke 77 X 72 mm (3.0 x 2.8 in)
Sleeve internal diameter 77.00 mm (3.03 in)
Piston skirt outer diameter 76.985 mm (3.03 in)
Cylinder Head
Warpage (limit) 0.10 mm (0.004 in)
Valve Arrangement: OHV
Valves: 4 (2 per cylinder)

Tightening torque specs

Tightening torque specs
Connecting rod bolt 12 Nm; 1.2 kg·m; 9 ft·lb
Cylinder head bolt 34 Nm; 3.5 kg·m; 25 ft·lb
Socket bolt 27 Nm; 2.7 kg·m; 20 ft·lb
Flywheel nut 196 Nm; 20.0 kg·m; 145 ft·lb
Pivot bolt 24 Nm; 2.4 kg·m; 17 ft·lb
Pivot adjusting nut 10 Nm; 1.0 kg·m; 7 ft·lb
Cylinder head cover bolt 9 Nm; 0.9 kg·m; 6.5 ft·lb
Oil level switch joint nut 10 Nm; 1.0 kg·m; 7 ft·lb
Oil drain bolt 39 Nm; 4.0 kg·m; 29 ft·lb
Standard torque values
Bolt, nut (5 mm) 5.5 Nm; 0.55 kg·m; 4.0 ft·lb
Bolt, nut (6 mm) 10 Nm; 1.0 kg·m; 7 ft·lb
Bolt, nut (8 mm) 22 Nm; 2.2 kg·m; 16 ft·lb
Bolt, nut (10 mm) 34 Nm; 3.5 kg·m; 25 ft·lb
Bolt, nut (12 mm) 54 Nm; 5.5 kg·m; 40 ft·lb

Service Information

Engine
Maximum speed 3,400 ± 100 rpm
Idle speed 1,400 ± 150 rpm
Cylinder compression 6.0-8.0 kg/cm2 (85-114 psi) at 500 rpm
Valve clearance
Intake valve clearance 0.15±0.02 mm (0.006±0.001 in)
Exhaust valve clearance 0.20±0.02 mm (0.008±0.001 in)
Oil system
Oil type Honda 4-stroke or an equivalent (SG or SF)
Recommended oil SAE 10W-30
Oil capacity With oil filter: 2.5 L (2.6 US. qt, 2.2 Imp. qt.)
Without oil filter: 2.2 L (2.3 US. qt, 1.9 Imp. qt.)
Oil change interval Every 6 month or 100 Hrs.
Ignition system
Spark plug NGK: ZGR5A
DENSO: J16CR-U
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
