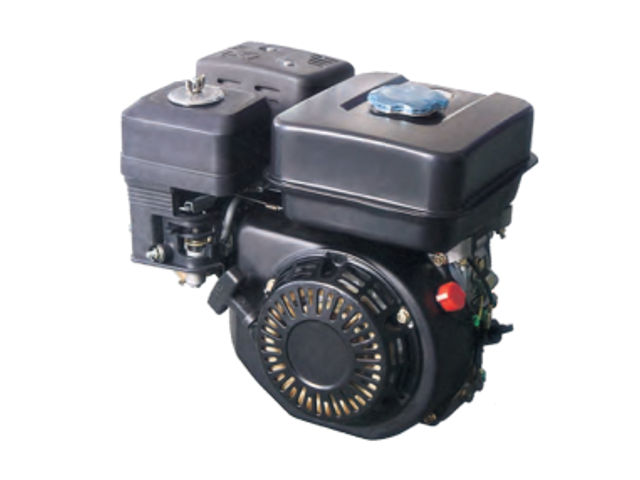

The Kama KG160 is a 163 cc (9.95 cu.in.) single-cylinder, air-cooled, four-stroke internal combustion small gasoline engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.
The Kama KG160 has OHV design, T.C.I ignition system and recoil starter. The KG160 engine compression ratio rating is 8.5:1, cylinder bore and the piston stroke are 68.0 mm (2.68 in) and 45.0 mm (1.78 in), respectively.
This engine produced 4.5 PS (3.3 KW; 4.5 HP) at 2,500 rpm of horsepower and 9.1 Nm (0.9 kg·m; 6.7 lbf·ft) at 2,500 rpm of torque.
General information
| Engine Specifications | |
| Model | KG160 |
| Type | 4-stroke, single cylinder |
| Displacement | 163 cm 3 (9.95 cu-in) |
| Max. horsepower | 4.5 PS (3.3 KW; 4.5 HP) at 2,500 rpm |
| Max. torque | 9.1 Nm (0.9 kg·m; 6.7 lbf·ft) at 2,500 rpm |
| Carburetor | Horizontal, butterfly valve |
| Cooling system | Forced-air |
| Ignition system | T.C.I |
| Lubricating system | Splash system |
| Starting system | Recoil starter |
| Stoping system | Ground switch |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel tank capacity | 3.6 liters (3.8 US.qts, 3.2 Imp. qts) |
| Fuel consumption | 395 g/kWH |
| Rotation direction | Clockwise (view from flywheel) |
Dimensions and Weight
| Kama KG160 | |
| Length, mm (in) | 305 (12.0) |
| Width, mm (in) | 365 (14.4) |
| Height, mm (in) | 335 (13.2) |
| Weight, kg (lb) | 14.0 (30.8) |
Maintenance data
| Oil system | |
| Oil type | Oil for 4-stroke engines (above CC grade) |
| Recommended oil | SAE 10W-30 |
| Oil capacity | 0.6 liters (0.63 US.qts, 0.53 Imp. qts) |
