Kama KM178F

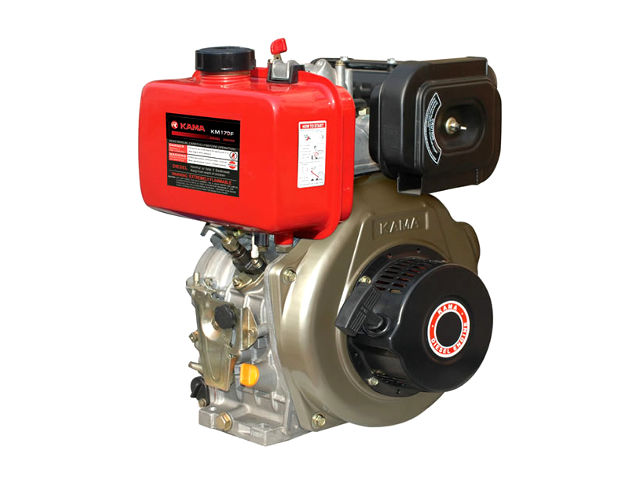

Kama KM178F diesel engineThe Kama KM178F is a 296 cc (18.06 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine with horizontal shaft manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The Kama KM178F/E engine has OHV design, single-cylinder, direct injection system, recoil starter, and crankshaft or camshaft power-take-off.

The KM178FE engine cylinder bore is 78.0 mm (3.07 in) and piston stroke is 62.0 mm (2.44 in), a compression ratio is 20:1. The engine produced from 5.4 HP (4.0 kW) at 3,000 rpm up to 6.0 HP (4.4 kW) at 3,500 rpm of maximum horsepower. The continuous rated output power is 5.0 HP (3.7 kW) at 3,000 rpm up to 5.4 HP (4.0 kW) at 3,600 rpm.

General information

Engine Specifications
Model Kama KM178F
Type 4-stroke, single cylinder, diesel engine
Displacement 296 cm 3 (18.06 cu-in)
Max. horsepower 6.0 HP (4.4 kW)) at 3,600 rpm
Max. torque –
Cooling system Forced-air
Lubricating system Pressure spray compound
Starting system Recoil or electric starter
Fuel used Light diesel oil
Fuel tank capacity 3.5 L (0.77 gal.)

Dimensions and Weight

Length, mm (in) 383 (15.08)
Width, mm (in) 421 (16.57)
Height, mm (in) 450 (17.72)
Weight, kg (lb) 33.0 (72.7)

Maintenance data

Engine
Engine speed 3,000-3,600 rpm
Valves
Valve clearance (cold state) 0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil type Oil for 4-stroke engines (above CC grade)
Recommended oil SAE 10W-30
Oil capacity 1.1 l (0.24 gal.)
Fuel system
Injection pressure 200 kg/cm2 (19.6 MPa)
Fuel supply advance angle 19°±1°
