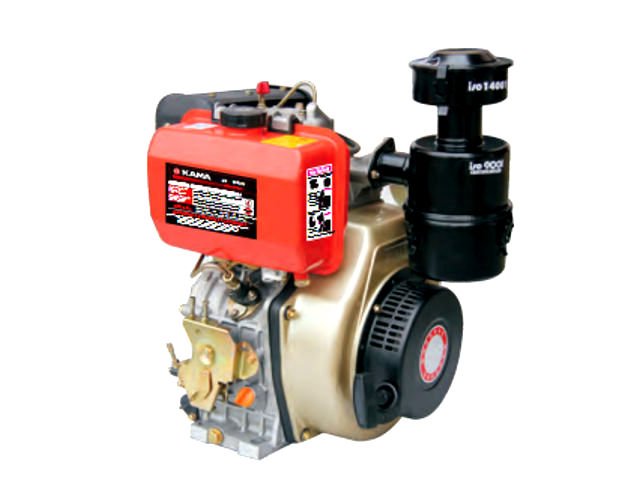

The Kama KM195F/E is a 532 cc (32.5 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine with horizontal shaft manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.
The Kama KM195F/E engine has OHV design, single-cylinder, direct injection system, and recoil or electric starter.
The KM195FE engine cylinder bore is 95.0 mm (3.74 in) and piston stroke is 75.0 mm (2.95 in). The engine produced from 10.9 HP (8.0 kW) at 3,000 rpm up to 12.5 HP (9.2 kW) at 3,600 rpm of maximum horsepower.
General information
| Engine Specifications | |
| Model | KM195F/E |
| Type | 4-stroke, single cylinder, diesel engine |
| Displacement | 532 cm 3 (32.5 cu-in) |
| Max. horsepower | 12.5 HP (9.2 kW) at 3,600 rpm |
| Max. torque | – |
| Cooling system | Forced-air |
| Lubricating system | Pressure spray compound |
| Starting system | Recoil or electric starter |
| Fuel used | Light diesel oil |
| Fuel tank capacity | 5.5 L (1.21 gal.) |
Dimensions and Weight
| Length, mm (in) | 430 (16.9) |
| Width, mm (in) | 440 (17.32) |
| Height, mm (in) | 515 (20.3) |
| Weight, kg (lb) | 54.0 (119.6) |
Maintenance data
| Engine | |
| Engine speed | 3,000-3,600 rpm |
| Valves | |
| Valve clearance (cold state) | 0.10-0.15 mm (0.0039-0.0059 in) |
| Oil system | |
| Oil type | Oil for 4-stroke engines (above CC grade) |
| Recommended oil | SAE 10W-30 |
| Oil capacity | 1.65 l (0.36 gal.) |
| Fuel system | |
| Injection pressure | 200 kg/cm2 (19.6 MPa) |
