Kawasaki FD440V

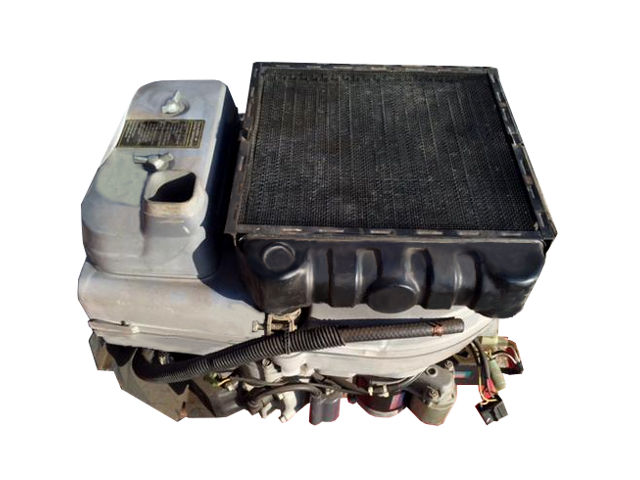

Kawasaki FD440VThe Kawasaki FD440V is a 0.44 l (437 cc, 26.67 cu-in) V-twin 90° liquid-cooled 4-stroke internal combustion small gasoline motor with vertical shaft, manufactured by Kawasaki Heavy Industries LTd., for general-purpose applications.

The FD440V has OHV (overhead valve design); cast-iron cylinder liners; horizontal draft type carburetor with fixed main jet; mechanical diaphragm type fuel pump; full transistor ignition system with fixed timing; mechanical governor and low tone muffler. The Kawasaki FD440V uses a full pressure lubrication system with spin-on oil filter and dual element air cleaner.

The engine was equipped with solenoid shift-type electric starter and 12V-15A charging coil with a regulator.

The Kawasaki FD440V develops 15.2 PS (11.2 kW; 15 HP) at 3,600 rpm of maximum power. A 67.0 mm (2.64 in) cylinder bore and 62.0 mm (2.44 in) piston stroke give the motor a total of 437 cc of displacement. Compression ratio rating is 8.7:1.

General information

Engine Specifications
Model FD440V
Type 4-stroke, OHV, V-twin 90°
Displacement 437 cm 3 (26.67 cu-in)
Max. horsepower 15.2 PS (11.2 KW; 15 HP) at 3,600 rpm
Max. torque (crank PTO)
Carburetor Horizontal draft type
Cooling system Liquid-cooling
Ignition system Transistorized ignition
Lubricating system Pressure feed lubrication system
Starting system Solenoid shift type electric starter
Charging system 12 Volt – 15A with regulator
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel consumption 245 g/HPh
Cooling system Pressurized forced circulation type

Dimensions and Weight

Kawasaki FD440V
Length, mm (in) 485 (19.1)
Width, mm (in) 358 (14.1)
Height, mm (in) 440 (17.3)
Dry weight, kg (lb) 35.2 (77.6)

Tightening torque specs

Tightening torque specs
Cylinder head 21 Nm; 2.1 kg·m; 15.5 ft·lb
Connecting rod 12 Nm; 1.2 kg·m; 9 ft·lb
Flywheel 88 Nm; 9.0 kg·m; 65 ft·lb
Crankcase cover 21 Nm; 2.1 kg·m; 15.5 ft·lb
Intake manifold 8 Nm; 8.0 kg·m; 6 ft·lb
Oil drain plug 25 Nm; 2.5 kg·m; 18.5 ft·lb
Valve clearance lock nut 8.8 Nm; 0.9 kg·m; 6.5 ft·lb

Maintenance data

Engine
Maximum speed 3500 ± 100 rpm
Idle speed 1500 ± 100 rpm
Cylinder compression 12.0 kg/cm2 (170 psi) at 500 rpm
Valve clearance
Intake valve 0.25 mm (0.010 in)
Exhaust valve 0.25 mm (0.010 in)
Oil system
Oil type 4-stroke or an equivalent (SC, SD, SE, SF, SG, or SH)
Recommended oil SAE 10W-40, 10W-30, 5W-20
Oil capacity (with filter changed) 1.8 L
Ignition system
Spark plug NGK: BMR6A
Spark plug gap 0.6-0.7 mm (0.024-0.028 in)
Spark plug tightening torque 17 Nm; 1.7 kg·m; 12.5 ft·lb
Fuel system
Carburetor Mikuni BV20-15
Main bore diameter 20.0 mm (0.78 in)
Venturi diameter 15.0 mm (0.59 in)
Main jet #87.5
Pilot jet #37.5
Main air jet 1.5
Pilot air jet 0.9
Pilot screw opening 1-11/16 turns out
Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
