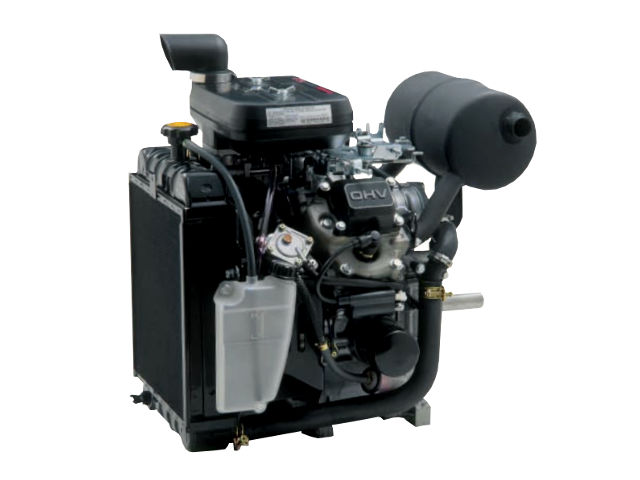

The Kawasaki FD501D is a 0.44 l (437 cc, 26.67 cu-in) V-twin 90° liquid-cooled 4-stroke internal combustion small gasoline motor with horisontal shaft, manufactured by Kawasaki Heavy Industries LTd., for general-purpose applications.
The FD501D has OHV (overhead valve design); cast-iron cylinder liners; float type carburetor with fixed main jet; pulse type fuel pump; full transistor ignition system with fixed timing; mechanical governor and low tone muffler. The Kawasaki FD501D uses a full pressure lubrication system with spin-on oil filter and dual element air cleaner.
The engine was equipped with solenoid shift-type electric starter and 12V-15A charging coil with a regulator.
The Kawasaki FD501D develops 16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm and 32.6 Nm (3.33 kg·m; 24.06 ft·lb) at 2,800 rpm of torque. A 67.0 mm (2.64 in) cylinder bore and 62.0 mm (2.44 in) piston stroke give the motor a total of 437 cc of displacement. Compression ratio rating is 9.0:1 or 9.3:1.
General information
Engine Specifications
Model
FD501D
Type
4-stroke, OHV, V-twin 90°
Displacement
437 cm 3 (26.67 cu-in)
Max. horsepower
16.2 PS (11.9 KW; 16.0 HP) at 3,600 rpm
Max. torque (crank PTO)
32.6 Nm (3.33 kg·m; 24.06 ft·lb) at 2,800 rpm
Carburetor
Float type
Cooling system
Liquid-cooling
Ignition system
Transistorized ignition
Lubricating system
Pressure feed lubrication system
Starting system
Electric starter
Charging system
12 Volt – 15A with regulator
Fuel used
Unleaded gasoline (octane number 86 or higher)
Fuel consumption
245 g/HPh
Cooling system
Pressurized forced circulation type
Dimensions and Weight
Kawasaki FD501D
Length, mm (in)
523 (20.6)
Width, mm (in)
411 (16.2)
Height, mm (in)
534 (21.0)
Dry weight, kg (lb)
37.2 (82.0)
Cylinder block
Cylinder block
Compression ratio:
9.3:1
Cylinder bore:
67.0 mm (2.64 in)
Piston stroke:
62.0 mm (2.44 in)
Number of piston rings (compression / oil):
2 / 1
Cylinder bore inside diameter (standard):
66.980-67.000 mm (2.637-2.638 in)
Piston outside diameter (standard):
66.950-66.965 mm (2.6358-2.6364 in)
Piston to cylinder bore clearance:
0.015 mm (0.0006 in)
Top ring groove clearance:
0.10 mm (0.004 in)
Top ring end gap:
1.00 mm (0.040 in)
Piston pin outside diameter:
15.980 mm (0.629 in)
Piston pin bore inside diameter:
16.04 mm (0.631 in)
Piston pin bearing inside diameter:
16.05 mm (0.632 in)
Crankshaft journal outside diameter:
29.92 mm (1.178 in)
Crankshaft bearing inside diameter:
31.06 mm (1.223 in)
Crankshaft journal outside diameter:
29.92 mm (1.178 in)
Cylinder head
Cylinder head
Valves:
4 (2 valves per cylinder)
Valve steam diameter (INTAKE):
4.930 mm (0.1941 in)
Valve steam diameter (EXHAUST):
4.920 mm (0.1937 in)
Valve spring free length (INTAKE):
27.30 mm (1.0748 in)
Valve spring free length (EXHAUST):
27.30 mm (1.0748 in)
Tightening torque specs
Tightening torque specs
Cylinder head
21 Nm; 2.1 kg·m; 15.5 ft·lb
Connecting rod
12 Nm; 1.2 kg·m; 9 ft·lb
Flywheel
88 Nm; 9.0 kg·m; 65 ft·lb
Crankcase cover
21 Nm; 2.1 kg·m; 15.5 ft·lb
Intake manifold
8 Nm; 8.0 kg·m; 6 ft·lb
Oil drain plug
25 Nm; 2.5 kg·m; 18.5 ft·lb
Valve clearance lock nut
8.8 Nm; 0.9 kg·m; 6.5 ft·lb
Maintenance data
Engine
Maximum speed
3500 ± 100 rpm
Idle speed
1500 ± 100 rpm
Cylinder compression
12.0 kg/cm2 (170 psi) at 500 rpm
Valve clearance
Intake valve
0.25 mm (0.010 in)
Exhaust valve
0.25 mm (0.010 in)
Oil system
Oil type
4-stroke or an equivalent (SC, SD, SE, SF, SG, or SH)
Recommended oil
SAE 10W-40, 10W-30, 5W-20
Oil capacity (with filter changed)
1.3 L (1.4 US qt)
Ignition system
Spark plug
NGK: BPR4ES
Spark plug gap
0.6-0.7 mm (0.024-0.028 in)
Spark plug tightening torque
17 Nm; 1.7 kg·m; 12.5 ft·lb
Fuel system
Type:
Float type carburetor
Carburetor model:
Mikuni BV24-18
Bore diameter:
24.0 mm (0.95 in)
Venturi diameter:
18.0 mm (0.71 in)
Main jet:
#112.5
Pilot jet:
#47.5
Main air jet:
1.2
Pilot air jet:
1.0
Pilot air screw:
1-3/8
Fuel pump type:
Pressure/vacuum operated diaphragm pump
Fuel pressure (min):
6.12 kPa (0.9 psi)
Cooling system
Type:
Pressurized forced circulation type
Coolant capacity:
2.0 liters (2.11 US.qts, 1.76 Imp. qts)
