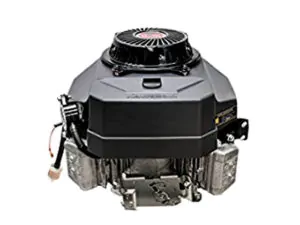

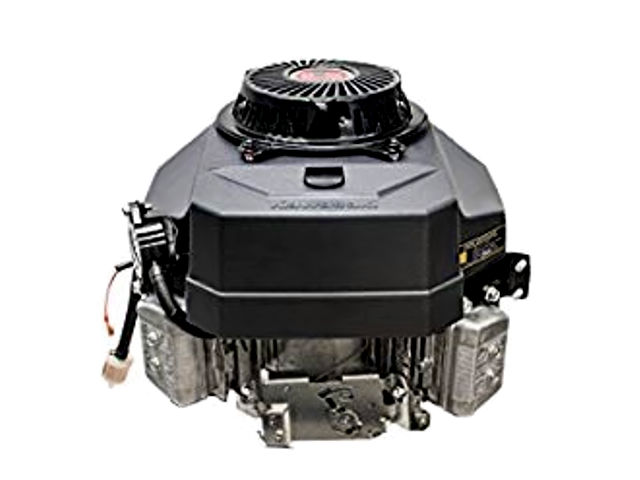

The Kawasaki FH580V is a 0.59 l (585 cc, 35.7 cu-in) V-twin 90° air-cooled 4-stroke internal combustion small gasoline engine with vertical shaft, manufactured by Kawasaki Heavy Industries LTd., for general-purpose applications.
The FH580V has V-twin 90° design with vertical PTO shaft, cast-iron cylinder liners, and overhead V-valves. The engine is equipped with inner vent carburetor; pulse fuel pump and electronic spark ignition system. The motor uses a full pressure lubrication system with spin-on oil filter and dual element air cleaner.
The engine has automatic compression release (ACR) system with recoil or electric starter (12V bendix starter with 12V-15A charging coil also available as an option).
It has a 74.0 mm (2.91 in) cylinder bore and 68.0 mm (2.68 in) piston stroke. Compression ratio rating is 8.5:1. The Kawasaki FH580V produced 19.3 PS (14.2 kW; 19.0 HP) at 3,600 rpm of maximum horsepower and 49.6 Nm (5.06 kg·m; 36.6 ft·lb) at 2,000 rpm of torque.
General information
| Engine Specifications | |
| Model | FH580V |
| Type | 4-stroke, OHV, V-twin 90° |
| Displacement | 585 cm 3 (35.7 cu-in) |
| Max. horsepower | 19.3 PS (14.2 KW; 19.0 HP) at 3,600 rpm |
| Max. torque (crank PTO) | 49.6 Nm (5.06 kg·m; 36.6 ft·lb) at 2,000 rpm |
| Carburetor | Inner vent carburetor |
| Cooling system | Air-cooling |
| Ignition system | Electronic spark ignition |
| Lubricating system | Full pressure with spin-on oil filter |
| Starting system | Recoil or electric starter |
| Charging system | 12V-15A charging coil with regulator |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel consumption | 245 g/HPh |
| Cooling system | Pressurized forced circulation type |
Tightening torque specs
| Tightening torque specs | Cylinder head | 25 Nm; 2.2 kg·m; 18.5 ft·lb |
| Connecting rod | 10 Nm; 1.0 kg·m; 7.4 ft·lb |
| Flywheel | 56 Nm; 5.7 kg·m; 41.3 ft·lb |
| Crankcase cover | 25 Nm; 2.2 kg·m; 18.5 ft·lb |
| Intake manifold | 6 Nm; 0.6 kg·m; 4.4 ft·lb |
| Valve clearance lock nut | 7 Nm; 0.7 kg·m; 5.1 ft·lb |
Maintenance data
| Engine | |
| Maximum speed | 3500 ± 100 rpm |
| Idle speed | 1500 ± 100 rpm |
| Cylinder compression | 4.0 kg/cm2 (56 psi) at 500 rpm |
| Valve clearance | |
| Intake valve | 0.10-0.15 mm (0.004-0.006 in) |
| Exhaust valve | 0.10-0.15 mm (0.004-0.006 in) |
| Oil system | |
| Oil type | 4-stroke or an equivalent (SF, SG, SH, or SJ ) |
| Recommended oil | SAE 10W-40, 10W-30, 5W-20 |
| Oil capacity (with filter changed) | 1.5-1.7 litre |
| Ignition system | |
| Spark plug | NGK: BPMR6A |
| Spark plug gap | 0.75 mm (0.029 in) |
| Spark plug tightening torque | 22 Nm; 2.2 kg·m; 16.2 ft·lb |
Author:
WHAT IS THE LENGTH AND DIAMATER OF THE DRIVE SHAFT ON FH580V ENGINE
1 1/8″ x 3 5/8″
Will the Kawasaki FC580 fit on a JD GT275
What Is The Clearance Between The Coils & The Magneto?
I use a credit card.
I don’t have a credit card so i use a .010 brass shim.
Hope this helps
Got a FH580V-CS35-R trying to find shaft size but it is not listed anywhere on here ??? is it 1″ 1 1/8th” ??
Looking to replace an FH580V in a JD LX280. What do I need to look for?
will a kawasaki fs 541 v fit i can’t find the width on that engine thanks pete
When adjusting valves on a 1994 Kawasaki 19.5 hp engine, when the cylinder is brought to top dead center to adjust the valves, is the cam lifter not riding on the compression release ball?
How can I get a workshop manual
