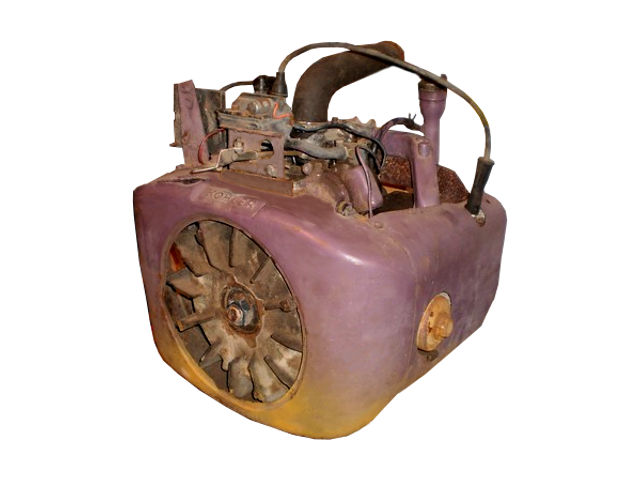

The Kohler K532 is an 880 cc (53.7 cu·in) twin-cylinder air-cooled four-stroke internal combustion gasoline engine from K-series, manufactured by Kohler Co.
The Kohler K532 engine has an L-head (side valve) design, horizontal PTO-shaft, and pressurized lubrication system with a positive pressure oil pump. This engine is equipped with side-draft carburetor and battery ignition systems. The K532 engine used paper air cleaner (oiled foam pre-cleaner was available as an option) and full flow type oil filter.
Cylinder bore and piston stroke are 85.7 mm (3.37 in) and 76.2 mm (3 in), respectively. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm of horsepower.
The breakdown of the engine code is as follows:
- K – K-series
- 53 – Approximate daisplacement (cu·in)
- 2 – Twin cylinders
- Suffix (engine is available with the following options):
S – Electric starter;
EP – Electric plant;
Q – Quled model;
General information
| Engine Specifications | |
| Model | K532 |
| Type | 4-stroke, L-head, twin cylinders |
| Displacement | 880 cm 3 (53.7 cu-in) |
| Max. horsepower | 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm |
| Max. torque (crank PTO) | – |
| Fuel system | Sidedraft carburetor |
| Cooling system | Forced-air |
| Ignition system | Battery (generator or alterator) ignition system |
| Lubricating system | Pressurized lubrication |
| Starting system | |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel tank capacity | – |
Cylinder Block and Head
| Cylinder block | ||
| Compression ratio: | – | |
| Bore x Stroke | 85.7 X 76.2 mm (3.37 x 3.00 in) | |
| Sleeve internal diameter | 85.7377-85.7123 mm (3.3755-3.3745 in) | |
| Piston skirt outer diameter | 85.5472-85.4710 mm (3.368-3.365 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Ring end gap | Top | 0.254-0.508 mm (0.010-0.020 in) |
| Second | 0.254-0.508 mm (0.010-0.020 in) | |
| Connecting rod small end ID | 22.2428-22.2504 mm (0.8757-0.876 in) | |
| Piston pin outer diameter | 22.2300-22.2352 mm (0.8752-0.8754 in) | |
| Cylinder Head | ||
| Valve Arrangement: | L-head (sidevalve) | |
| Valves: | 2 | |
Tightening torque specs
| Tightening torque specs | |
| Cylinder head bolt | 48 Nm; 4.9 kg·m; 35 ft·lb |
| Flywheel | 156 Nm; 15.9 kg·m; 115 ft·lb |
| Spark plug | 25-30 Nm; 2.55-3.06 kg·m; 18-22 ft·lb |
Service Information
| Engine | |
| Max speed | 3,600 rpm |
| Valve clearance | |
| Intake valve clearance | 0.20-0.25 mm (0.0079-0.0098 in) |
| Exhaust valve clearance | 0.43-0.48 mm (0.0169-0.0189 in) |
| Oil system | |
| Oil type | API SF or SG |
| Recommended oil |
Summer: SAE 30W Winter: SAE 5W-20, 5W-30 |
| Oil capacity |
Without oil filter: 2.8 L (3.0 US. qt, 2.5 Imp. qt.) With oil filter: 3.3 L (3.5 US. qt, 2.9 Imp. qt.) |
| Ignition system | |
| Spark plug | Champion: RH10 |
| Spark plug gap | 0.65 mm (0.0256 in) |
