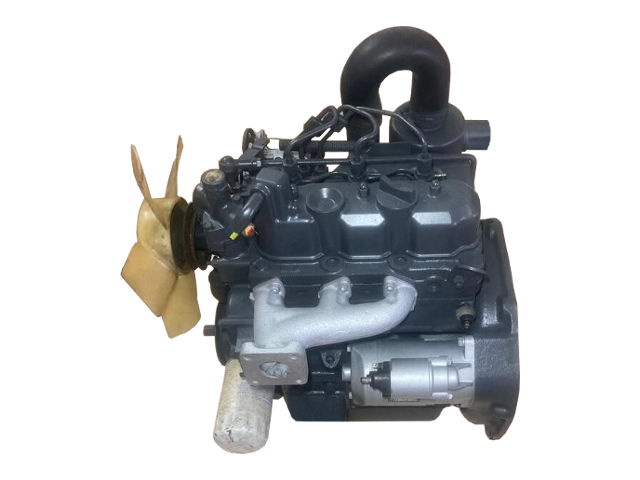

The Kubota D850-B is a 855 cc (52.2 cu-in) straight-three, water-cooled naturally aspirated diesel engine from Kubota 70 mm series.
The Kubota D850-B engine has a spherical type сombustion сhamber with glow plug, Bosch K-type mini fuel injection pump, and Bosch throttle type injection nozzle. The compression ratio rating is 22.0:1. The cylinder bore and the piston stroke are 72.0 mm (2.83 in) and 70.0 mm (2.76 in), respectively.
The D850-B diesel engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,000 rpm of gross (intermittent) horsepower and 50.6 N·m (5.2 kg·m, 37.3 ft·lb) at 1,800 rpm of torque.
The breakdown of the engine code is as follows:
- D – 3-cylinders
- 85 – Approximate displacement 850 cc
General information
Engine Specifications | |
Engine code | D850-B |
Layout | Straight-3, vertical diesel engine |
Fuel type | Diesel fuel No.2-D |
Production | – |
Displacement | 855 cm3 (52.2 cu in) |
Max. Horsepower |
Net (continuous): 15.8 PS (11.6 KW; 15.5 HP) at 3,000 rpm Net (intermittent): 18.2 PS (13.4 kW; 18.0 HP) at 3,000 rpm Gross (intermittent): 20.3 PS (14.9 kW; 20.0 HP) at 3,000 rpm |
Torque output | 50.6 N·m (5.2 kg·m, 37.3 ft·lb) at 1,800 rpm |
Injection type | Indirect injection |
Cooling system | Liquid-cooled |
Fuel injection pump | Bosch K-type type mini fuel injection pump |
Fuel nozzle | Bosch throttle type |
Starting system | Electric starting with 12V (0.8 kW) starter |
Starting support device | Glow plug in combustion chamber |
Governor | Centrifugal ball mechanical governor |
Power adder | None |
Firing order | 1-2-3 |
Dimensions (L x W x H): | 471 x 423 x 566 mm (18.5 x 16.7 x 22.3 in) |
Weight | 82.6 kg (182.1 lbs) |
Cylinder block
Cylinder block | ||
Compression ratio: | 22.0:1 | |
Cylinder bore: | 72.0 mm (2.83 in) | |
Piston stroke: | 70.0 mm (2.76 in) | |
Number of piston rings (compression / oil): | 2 / 1 | |
Cylinder inner diameter: | 72.000-72.019 mm (2.8346-2.8354 in) | |
Piston skirt diameter | – | |
Piston ring side clearance: | Second | 0.085-0.112 mm (0.0033-0.0044 in) |
Oil | 0.020-0.055 mm (0.0008-0.0022 in) | |
Piston ring end gap: | Top | 0.250-0.400 mm (0.0098-0.0157 in) |
Second | 0.250-0.400 mm (0.0098-0.0157 in) | |
Oil | 0.250-0.400 mm (0.0098-0.0157 in) | |
Piston pin outer diameter | 20.002-20.011 mm (0.7875-0.7878 in) | |
Crankshaft main journal diameter: | 43.934-43.950 mm (1.7297-1.7303 in) | |
Crankpin diameter: | 36.959-36.975 mm (1.4551-1.4557 in) |
Cylinder head
Cylinder head | ||
Valves: | 6 (2 valves per cylinder) | |
Valve timing: | INTAKE |
Open: 20° B.T.D.C. Close: 45° A.B.D.C. |
EXHAUST |
Open: 50° B.B.D.C. Close: 15° A.T.D.C. |
|
Valve seat width: | INTAKE | 2.120 mm (0.0835 in) |
EXHAUST | 2.120 mm (0.0835 in) | |
Valve stem diameter: | INTAKE | 6.960-6.975 mm (0.274-0.2746 in) |
EXHAUST | 6.960-6.975 mm (0.274-0.2746 in) | |
Valve spring free length: | INTAKE | 35.100-34.800 mm (1.3819-1.3701 in) |
EXHAUST | 35.100-34.800 mm (1.3819-1.3701 in) | |
Camshaft lobe height: | INTAKE | 26.880 mm (1.0583 in) |
EXHAUST | 26.880 mm (1.0583 in) | |
Camshaft journal diameter: | 32.934-32.950 mm (1.2966-1.2972 in) |
Maintenance data
Valve clearance | |
Intake valve | 0.145-0.185 mm (0.0057-0.0073 in) |
Exhaust valve | 0.145-0.185 mm (0.0057-0.0073 in) |
Compression pressure | |
Standard | 3.09 MPa, 31.5 kgf/cm2, 448 psi |
Oil system | |
Recommended engine oil | CC or higher |
SAE Viscosity Number | SAE 10W-30, 10W-40 |
Engine oil capacity | 4.6 L (4.86 US. qt, 4.05 Imp. qt.) |
Cooling system | |
Type | Water with pressurized radiator |
Coolant capacity | 4.6 L (4.9 US. qt, 4.0 Imp. qt.) |
