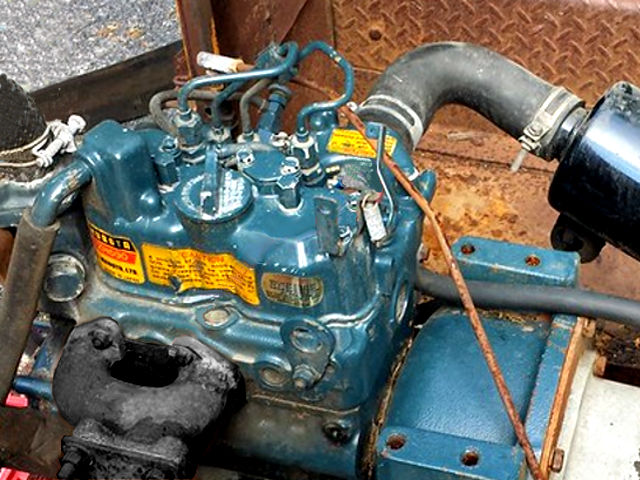

The Kubota ZH600-B is a 0.6 L (570 cc, 34.78 cu-in) straight-two, water-cooled naturally aspirated diesel engine from Kubota 70 mm series.
The Kubota ZH600-B engine has a spherical type сombustion сhamber with glow plug, Bosch K-type mini fuel injection pump, and Bosch throttle type injection nozzle. The compression ratio rating is 22.0. The cylinder bore and the piston stroke are 72.0 mm (2.83 in) and 70.0 mm (2.76 in), respectively.
The ZH600-B diesel engine produced 15.6 PS (11.5 kW; 15.5 HP) at 3,600 rpm of gross (intermittent) horsepower and 33.2 N·m (3.4 kg·m, 24.5 ft·lb) at 2,000 rpm of torque.
The breakdown of the engine code is as follows:
- Z – 2-cylinders
- 6 – Approximate displacement 600 cc
General information
| Engine Specifications | |
| Engine code | ZH600-B |
| Layout | Straight-2, diesel engine |
| Fuel type | Diesel fuel No.2-D |
| Production | – |
| Displacement | 0.6 L, 570 cm3 (34.78 cu in) |
| Max. Horsepower |
Net (continuous): 11.7 PS (8.6 KW; 11.5 HP) at 3,200 rpm Net (intermittent): 14.1 PS (10.4 kW; 13.9 HP) at 3,600 rpm Gross (intermittent): 15.6 PS (11.5 kW; 15.5 HP) at 3,600 rpm |
| Torque output | 33.2 N·m (3.4 kg·m, 24.5 ft·lb) at 2,000 rpm |
| Injection type | Indirect injection |
| Cooling system | Liquid-cooled |
| Fuel injection pump | Bosch K-type type mini fuel injection pump |
| Fuel nozzle | Bosch throttle type |
| Starting system | Electric starting with 12V (0.8 kW) starter |
| Starting support device | Glow plug in combustion chamber |
| Governor | Centrifugal ball mechanical governor |
| Power adder | None |
| Firing order | 1-2 |
| Dimensions (L x W x H): | 520 x 389 x 504 mm (20.5 x 15.4 x 19.8 in) |
| Weight | 69.7 kg (153.7 lbs) |
Cylinder block
| Cylinder block | ||
| Compression ratio: | 22.0:1 | |
| Cylinder bore: | 72.0 mm (2.83 in) | |
| Piston stroke: | 70.0 mm (2.76 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Cylinder inner diameter: | 72.000-72.019 mm (2.8346-2.8354 in) | |
| Piston skirt diameter | – | |
| Piston ring side clearance: | Second | 0.085-0.112 mm (0.0033-0.0044 in) |
| Oil | 0.020-0.055 mm (0.0008-0.0022 in) | |
| Piston ring end gap: | Top | 0.250-0.400 mm (0.0098-0.0157 in) |
| Second | 0.250-0.400 mm (0.0098-0.0157 in) | |
| Oil | 0.250-0.400 mm (0.0098-0.0157 in) | |
| Piston pin outer diameter | 20.002-20.011 mm (0.7875-0.7878 in) | |
| Crankshaft main journal diameter: | 43.934-43.950 mm (1.7297-1.7303 in) | |
| Crankpin diameter: | 36.959-36.975 mm (1.4551-1.4557 in) | |
Cylinder head
| Cylinder head | ||
| Valves: | 4 (2 valves per cylinder) | |
| Valve timing: | INTAKE |
Open: 20° B.T.D.C. Close: 45° A.B.D.C. |
| EXHAUST |
Open: 50° B.B.D.C. Close: 15° A.T.D.C. |
|
| Valve seat width: | INTAKE | 2.120 mm (0.0835 in) |
| EXHAUST | 2.120 mm (0.0835 in) | |
| Valve stem diameter: | INTAKE | 6.960-6.975 mm (0.274-0.2746 in) |
| EXHAUST | 6.960-6.975 mm (0.274-0.2746 in) | |
| Valve spring free length: | INTAKE | 35.100-34.800 mm (1.3819-1.3701 in) |
| EXHAUST | 35.100-34.800 mm (1.3819-1.3701 in) | |
| Camshaft lobe height: | INTAKE | 26.880 mm (1.0583 in) |
| EXHAUST | 26.880 mm (1.0583 in) | |
| Camshaft journal diameter: | 32.934-32.950 mm (1.2966-1.2972 in) | |
Maintenance data
| Valve clearance | |
| Intake valve | 0.145-0.185 mm (0.0057-0.0073 in) |
| Exhaust valve | 0.145-0.185 mm (0.0057-0.0073 in) |
| Cooling system system | |
| Coolant capacity: | 3.0 liters (3.2 US.qts, 2.6 Imp. qts) |
| Compression pressure | |
| Standard | 3.09 MPa, 31.5 kgf/cm2, 448 psi |
| Oil system | |
| Recommended engine oil | CC or higher |
| SAE Viscosity Number | SAE 10W-30, 10W-40 |
| Engine oil capacity | 2.55 L (2.69 US. qt, 2.24 Imp. qt.) |
