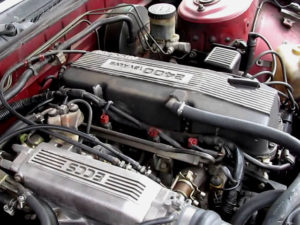

The Nissan KA24E is a 2.4 l (2,389 cc, 145.79 cu-in) straight-4, four-stroke cycle gasoline engine from Nissan Ka-family. The Nissan KA24E motor was produced from 1988 through 1997.
The Nissan KA24E engine has SOHC (single overhead camshaft) design with 12 valves (3 per cylinder). The engine used a cast-iron cylinder block and aluminum cylinder head. The engine is equipped with Hitachi sequential electronic fuel injection system, ignition timing control system and EGR system.
An 89 mm (3.5 in) cylinder bore and 96 mm (3.78 in) piston stroke give the motor a total of 2,389 cc of displacement. The compression ratio is 8.6:1 or 9.1:1 for early 1989 Nissan 240SX. The Nissan KA24E engine produced 143 PS (105 kW; 140 HP) at 5,600 rpm of horsepower and 206 Nm (21.0 kg·m; 152.0 ft·lb) at 4,400 rpm of torque.
The breakdown of the engine code is as follows:
- KA – Engine Family
- 24 – 2.4 Liter Displacement
- None – SOHC
- E – Multi Point Fuel Injection
General information
| Engine Specifications | |
| Engine code | KA24E |
| Layout | Four stroke, Inline-4 (Straight-4) |
| Fuel type | Gasoline |
| Production | 1988-1997 |
| Displacement | 2.4 L, 2,389 cm3 (145.79 cu in) |
| Fuel system | Electronic fuel injection system |
| Power adder | None |
| Max. horsepower |
136 PS (100 KW; 134 HP) at 5,200 rpm 143 PS (105 KW; 140 HP) at 5,600 rpm |
| Max. torque |
206 Nm (21.0 kg·m; 152.0 ft·lb) at 4,400 rpm 209 Nm (21.3 kg·m; 154.2 ft·lb) at 3,600 rpm |
| Firing order | 1-3-4-2 |
| Dimensions (L x H x W): | – |
| Weight | – |
Cylinder block
The Nissan KA24E motor has a cast-iron cylinder block, cast steel connecting rods, a half-counterweighted forged steel crankshaft. The KA24E engine cylinder bore is 89.0 mm (3.5 in) and the piston stroke is 96 mm (3.78 in), compression ratio rating is 8.6:1 or 9.1:1.
| Cylinder block | ||
| Cylinder block alloy | Cast iron | |
| Compression ratio: | 8.6:1 or 9.1:1 | |
| Cylinder bore: | 89.0 mm (3.50 in) | |
| Piston stroke: | 96.0 mm (3.78 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Number of main bearings: | 5 | |
| Cylinder inner diameter (standard): | 89.000-89.010 mm (3.5039-3.5043) in) | |
| Piston skirt diameter (standard): | 88.970-88.980 mm (3.5027-3.5031 in) | |
| Piston pin outer diameter: | 20.989-21.001 mm (0.8263.0.8268 in) | |
| Piston ring side clearance: | Top | 0.040-0.080 mm (0.0016-0.0031 in) |
| Second | 0.030-0.070 mm (0.0012-0.0028 in) | |
| Oil | 0.065-0.135 mm (0.0026-0.0053) in) | |
| Piston ring end gap: | Top | 0.28-0.43 mm (0.0110-0.0169 in) |
| Second |
0.45-0.60 mm (0.0177-0.0236 in) – R or T 0.55-0.70 mm (0.0217-0.0276 in) – N |
|
| Oil | 0.20-0.60 mm (0.0079-0.0236 in) | |
| Connecting rod center distance: | 164.95-165.05 mm (6.4941-6.4980 in) | |
| Crankshaft journal diameter: | 59.967-59.975 mm (2.3609-2.3612 in) | |
| Crankpin diameter: | 49.968-49.974 mm (1.9672-1.9675 in) | |
| Crankshaft center distance: | 47.97-48.03 mm (1.8886-1.8909 in) | |
main bearing beam bolts tightening procedure and torque specs:
- 46-52 Nm; 4.7-5.3 kg·m; 34-38 ft·lb in two-three stages
After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.
Connecting rod bearing nut
- Step 1: 14-16 Nm; 1.4-1.6 kg·m; 10-12 ft·lb
- Step 2: Turn nuts 60-65°
Crankshaft pulley bolt
- 118-157 Nm; 12-16 kg·m; 87-116 ft·lb
Flywheel (M/T) or Drive plate (A/T) fixing bolts
- 93-103 Nm; 9.5-10.5 kg·m; 69-76 ft·lb
Cylinder head
The cylinder head is made of aluminum alloy. The valve system has a pivot type rocker arm that is activated directly by the cam mechanism. The Nissan KA24E motor use three valves per cylinder (two intake valves and single exhaust valve) and the dual type valve springs. Intake valves are 34.0 mm (1.34 in) in diameter and the exhaust valves are 40.0 mm (1.57 in).
The intake valve duration is 240°, valve lift is 10.4 mm (0.409 in); the exhaust valve duration is 248°, valve lift is 10.4 mm (0.409 in). The KA24E rev limiter is set on 6,500 rpm. The Nissan KA24E engine version for SUV uses a camshaft with duration 232°/232°, and valve lift 9.7/9.7 mm. For this engine, redline is lowered to 6,000 rpm.
The camshaft is driven by a single row roller chain driven by the crankshaft. The tension of the chain is controlled by a chain tensioner which is operated by spring and oil pressure.
| Cylinder head | ||
| Valve Arrangement: | SOHC, chain drive | |
| Valves: | 12 (3 valves per cylinder) | |
| Intake/Exhaust duration: |
All models: 240°/248° SUV: 232°/232° |
|
| Valve head diameter: | INTAKE | 34.0-34.2 mm (1.339-1.346 in) |
| EXHAUST | 40.0-40.2 mm (1.575-1.583 in) | |
| Valve length: | INTAKE | 119.9-120.2 mm (4.720-4.732 in) |
| EXHAUST | 120.67-120.97 mm (4.7508-4.7626) in) | |
| Valve stem diameter: | INTAKE | 6.965-6.980 mm (0.2742-0.2748 in) |
| EXHAUST | 7.948-7.960 mm (0.3129-0.3134 in) | |
| Valve spring free length: | INTAKE |
Outer: 57.44 mm (2.2614 in) Inner: 53.34 mm (2.1000 in) |
| EXHAUST |
Outer: 53.21 mm (2.0949 in) Inner: 47.95 mm (1.8878 in) |
|
| Valve lift: | INTAKE | 10.4 mm (0.409 in) |
| EXHAUST | 10.4 mm (0.409 in) | |
| Camshaft cam height: | INTAKE | 44.839-45.029 mm (1.7653-1.7728 in) |
| EXHAUST | 44.839-45.029 mm (1.7653-1.7728 in) | |
| Outer camshaft journal diameter: | 32.935-32.955 mm (1.2967-1.2974 in) | |
Head tightening procedure and torque specs:
- Step 1: 29 Nm; 3.0 kg·m; 22 ft·lb
- Step 2: 78 Nm; 8.0 kg·m; 58 ft·lb
- Step 3: Loosen all bolts completely
- Step 4: 29 Nm; 3.0 kg·m; 22 ft·lb
- Step 5: Turn all bolts 80-85° or to 74-83 Nm; 7.5-8.5 kg·m; 54-61 ft·lb
Camshaft sprocket bolt
- 118-157 Nm; 12-16 kg·m; 87-116 ft·lb
Maintenance data
| Compression pressure | |
| Standard | 13.5 kg/cm2 (192 psi) / 300 rpm |
| Minimun | 10.0 kg/cm2 (142 psi) / 300 rpm |
| Differential limit between cylinders | 1.0 kg/cm2 (14 psi) / 300 rpm |
| Oil system | |
| Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 10W-30 |
| Oil type API | SF or SG |
| Engine oil capacity (Refill capacity) |
With oil filter: 3.5 l Without oil filter: 3.2 l |
| Oil change interval, km (miles) | 12,000 (7,500) |
| Oil pressure | 4.2-4.9 kg/cm2 (49.8-56.9 psi) at 3,000 rpm |
| Ignition system | |
| Spark plug |
Standard type: ZFR5D-11 (NGK) Hot type: ZFR4D-11 (NGK) Cold type: ZFR6D-11 (NGK) |
| Spark plug gap | 1.0-1.1 mm (0.039-0.043 in) |
| Spark plug tightening torque | 20-29 Nm; 2.0-3.0 kg·m; 14-22 ft·lb |
Vehicle applications
| Model | Years Produced |
| Nissan 240SX | 1989–1990 |
| Nissan D21 Truck | 1990–1997 |
| Nissan D22 Navara | 1997-1999 |
| Nissan Pathfinder | 1990-1995 |
| Nissan Axxess | 1989–1995 |
| Nissan Prairie | 1989–1995 |
| Nissan Stanza | 1990–1992 |
| Nissan Pintara | 1989–1992 |
| Ford Corsair | 1989–1992 |
| Nissan Terrano II | 1993-1996 |
