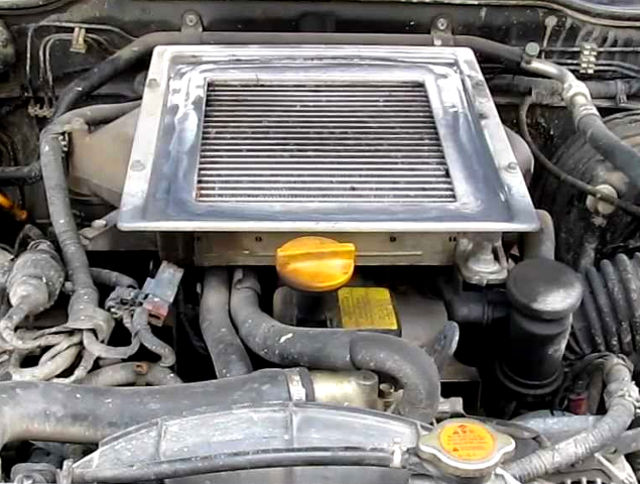

The Nissan TD27Ti is a 2.7 l (2,663 cc, 162.5 cu.in.) inline-four, water-cooled diesel engine with turbocharger and intercooler from Nissan TD family.
The Nissan TD27Ti compression ratio rating is 21.9:1. The cylinder bore is 96.0 mm (3.8 in) and the piston stroke is 92.0 mm (3.6 in). The TD27Ti engine was equipped with electronic fuel injection pump and EGR system.
The engine produced 125 PS (92 kW, 123 HP) of horsepower at 4,300 rpm and 242 Nm (24.7 kg⋅m, 179 lb⋅ft) of torque at 2,400 rpm.
The breakdown of the engine code is as follows:
- TD – Engine Family
- 27 – 2.7 Liter Displacement
- T – Turbocharger
- i – Intercooler
General information
| Engine Specifications | |
| Engine code | TD27Ti |
| Layout | Straight-4, vertical |
| Fuel type | Diesel |
| Production | – |
| Displacement | 2.7L, 2,663 cc (162.5 cu in) |
| Injection pump | Electronic fuel injection pump |
| Power adder | Turbocharger with intercooler |
| Max. Horsepower | 125 PS (92 kW, 123 HP) at 4,300 rpm |
| Torque output | 242 Nm (24.7 kg⋅m, 179 lb⋅ft) at 2,400 rpm |
| Firing order | 1-3-4-2 |
| Dimensions (L x H x W): | – |
| Weight | |
Cylinder block
The cylinder block has a monoblock high-strength cast-iron structure with replaceable liners and five-bearing-support system. The TD27Ti engine has a drop-forged steel crankshaft, all main and connecting rod bearing surfaces are induction-hardened.
The Nissan TD27Ti motor has an aluminum alloy piston for high strength, lightweight and good heat conductivity; two compression and single oil control ring. The cylinder bore is 96 mm, piston stroke is 92 mm and the compression ratio rating is 21.9:1.
| Cylinder block | ||
| Cylinder block alloy | Cast iron | |
| Compression ratio: | 21.9:1 | |
| Cylinder bore: | 96.0 mm (3.8 in) | |
| Piston stroke: | 92.0 mm (3.62 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Number of main bearings: | 5 | |
| Block Height: | 549.5-550.5 mm (21.6-21.7 in) | |
| Cylinder liner inner diameter: | 96.000-96.010 mm (3.7795-3.7799 in) | |
| Piston skirt diameter | 95.890-95.900 mm (3.7752-3.7756 in) | |
| Piston ring side clearance: | Top | 0.00-0.05 mm (0.0-0.0020 in) |
| Second | 0.04-0.072 mm (0.0016-0.0028 in) | |
| Oil | 0.035-0.040 mm (0.0014-0.0016 in) | |
| Piston ring end gap: | Top | 0.25-0.35 mm (0.0098-0.0140 in) |
| Second | 0.50-0.75 mm (0.0197-0.0295 in) | |
| Oil | 0.25-0.55 mm (0.0098-0.0217 in) | |
| Piston pin outer diameter | 29.993-30.000 mm (1.1808-1.1811 in) | |
| Piston pin hole diameter | 29.992-30.000 mm (1.1808-1.1811 in) | |
| Connecting rod center distance: | 156.975-157.025 mm (6.1801-6.1821 in) | |
| Crankshaft journal diameter: | 70.907-70.920 mm (2.7916-2.7921 in) | |
| Crankpin diameter: | 56.913-56.926 mm (2.2407-2.2412 in) | |
| Crankshaft center distance: | 46.00 mm (1.8110 in) | |
Main bearing cap bolts tightening procedure and torque specs:
- 167-177 Nm; 17.0-18.0 kg·m; 123-130 ft·lb
After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.
Connecting rod bearing nut
- 74-78 Nm; 7.5-8.0 kg·m; 55-57 ft·lb
Crankshaft pulley
- 294-324 Nm; 30-33 kg·m; 217-239 ft·lb
Flywheel (M/T) or Drive plate (A/T) fixing bolts
- 83-93 Nm; 8.5-9.5 kg·m; 61-69 ft·lb
Cylinder head
The engine has OHV design with rocker shaft, rocker arms and two valves per cylinder. Intake valves are 42.5 mm in diameter, and the exhaust valves are 37 mm.
| Cylinder head | ||
| Cylinder head alloy | Cast iron | |
| Valve Arrangement: | OHV | |
| Valves: | 8 (2 valves per cylinder) | |
| Intake valves diameter: | 42.5 mm (1.67 in) | |
| Exhaust valves diameter: | 37.0 mm (1.5 in) | |
| Valves length: | 117.0 mm (4.61 in) | |
| Intake valve stem diameter: | 7.965-7.980 mm (0.3136-0.3142 in) | |
| Exhaust valves stem diameter: | 7.945-7.960 mm (0.3128-0.3134 in) | |
| Rocker shaft outer diameter | 19.979-20.000 mm (0.7866-0.7874 in) | |
| Rocker arm inner diameter | 20.014-20.035 mm (0.7880-0.7888 in) | |
| Camshaft journal diameter: |
Front: 50.721-50.740 mm (1.9969-1.9976 in) 2nd: 50.521-50.540 mm (1.9890-1.9898 in) 3nd: 50.321-50.340 mm (1.9811-1.9819 in) 4nd: 50.121-50.140 mm (1.9733-1.9740 in) Rear: 49.921-49.940 mm (1.9654-1.9661 in) |
|
| Cam height: | INTAKE | 41.570 mm (1.6366 in) |
| Second | 41.900 mm (1.6496 in) | |
Head tightening procedure and torque specs:
- Step 1: 39-44 Nm; 4.0-4.5 kg·m; 29-33 ft·lb
- Step 2: 34-59 kg·m; 5.5-6.0 kg·m; 40-43 ft·lb
- Step 3: Turn all bolts 90-95°
Camshaft gear bolt
- 44-49 Nm; 4.5-5.0 kg·m; 33-36 ft·lb
Problems and malfunctions
The TD family of Nissan diesel engines are very reliable, strong, and ask for little in the way of maintenance. But this generation of engines requires high-quality service.
Maintenance data
| Valve clearance (HOT) | |
| Intake valve | 0.35 mm (0.014 in) |
| Exhaust valve | 0.35 mm (0.014 in) |
| Compression pressure | |
| Standard | 30.0 kg/cm2 (29.4 bar, 427 psi) / 200 rpm |
| Minimun | 25.0 kg/cm2 (24.5 bar, 356 psi) / 200 rpm |
| Compression differential limit between cylinders | 3.0 kg/cm2 (2.9 bar, 43 psi) / 200 rpm |
| Oil system | |
| Recommended engine oil |
For WARM and COLD areas: 15W-40 For HOT areas: 20W-40, 20W-50 |
| Oil type | API CE, ACEA B2-96 (CCMC PD1), D5 level SHPD |
| Engine oil capacity | 6.2 l (5.5 Imp. qt) |
| Fuel system | |
| Injection nozzle initial injection pressure: |
Used Nozzle: 12,259-12,749 kPa (122.6-127.5 bar, 125-130 kg/cm2, 1,778-1,849 psi) New Nozzle: 12,749-13,730 kPa (127.5-137.3 bar, 130-140 kg/cm2, 1,849-1,991 psi) |
| Idling |
700 rpm (withuot power steering) 850 rpm (wiht power steering) |
Vehicle applications
| Model | Years Produced |
| Nissan Homy E24 | 1990-1995 |
| Nissan Caravan E24 | 1990-1995 |
| Nissan Terrano II R20 | 1996-2008 |
