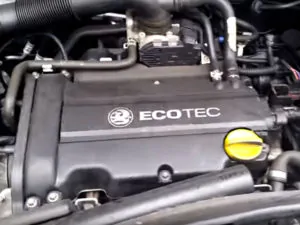

The Opel Z14XEP is a 1.4 l (1,364 cc, 83.24 cu-in) straight-four 4-stroke natural aspirated gasoline small-displacement engine from the second generation of the GM Family O Ecotec engines, developed by Opel, at the time a subsidiary of General Motors. The engine was manufactured from 2003 to 2010.
The Opel Z14XEP engine uses a light-weight cast-iron engine block with a cast-iron crankshaft and aluminum head with dual chain-driven overhead camshafts (DOHC) and four valves per cylinder (16 valves in total). This engine used TwinPort technology – twin intake ports with a choke closing one of the ports at low RPM, providing strong air swirl pattern for higher torque levels and better fuel economy. The engine used ECU Bosch ME7.6.1 or Bosch ME7.6.2.
Bore and stroke are 73.4 mm (2.89 in) and 80.6 mm (3.17 in), respectively. Compression ratio rating is 10.5:1. The Z14XEP engine produces 90 PS (66 kW; 89 HP) at 5,600 rpm of maximum horsepower and 125 Nm (12.7 kg·m; 92.2 ft·lb) at 4,000 rpm of peak torque.
The breakdown of the engine code is as follows:
- Z – Euro 4 engine
- 14 – 1.4 Liter displacement
- X – Comression ratio from 10 to 11.5:1
- E – Multi Point Fuel Injection system
- P – Increased power
General information
| Engine Specifications | |
| Engine code | Opel Z14XEP |
| Layout | Four stroke, Inline-4 (Straight-4) |
| Fuel type | Gasoline (petrol) |
| Production | 2003-2010 |
| Displacement | 1.4 L, 1,364 cm3 (83.24 cu in) |
| Fuel system | Multipoint fuel injection (MFI) |
| Power adder | None |
| Power output | 90 PS (66 kW; 89 HP) at 5,600 rpm |
| Torque output | 125 Nm (12.7 kg·m; 92.2 ft·lb) |
| Firing order | 1-3-4-2 |
| Dimensions (L x W x H): | – |
| Weight | – |
Cylinder block
The engine used a cast-iron cylinder block and a cast-iron crankshaft five-bearings supported system. Bore and stroke are 73.4 mm (2.89 in) and 80.6 mm (3.17 in). Compression ratio rating is 10.5:1.
| Cylinder block | ||
| Cylinder block alloy | Cast-iron | |
| Compression ratio: | 10.5:1 | |
| Cylinder bore: | 73.4 mm (2.89 in) | |
| Piston stroke: | 80.6 mm (3.17 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
Cylinder head
The cylinder head is made of an aluminum alloy. The Z14XEP engine has chain-driven dual overhead camshafts with TwinPort technology. Valves are actuated via roller finger followers with hydraulic tappets.
| Cylinder head | ||
| Cylinder head alloy: | Aluminium | |
| Valve Arrangement: | DOHC, chain-driven | |
| Valves: | 16 (4 valves per cylinder) | |
| Valve timing: | INTAKE | – |
| EXHAUST | – | |
| Valve head diameter: | INTAKE | 27.90-28.10 mm (1.0984-1.1062 in) |
| EXHAUST | 24.90-25.10 mm (0.9803-0.9880 in) | |
Head tightening procedure and torque specs:
- Step 1: 25 Nm (2.5 kg·m, 18.4 ft·lb)
- Step 2: Turn all bolts 60°
- Step 3: Turn all bolts 60°
- Step 4: Turn all bolts 60°
Maintenance data
| Oil system | |
| Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 5W-30, 5W-40, 10W-30, 10W-40 |
| Oil type |
API SG / CD CCMC G4 / G5 |
| Engine oil capacity (Refill capacity) | With filter change 3.5 l |
| Oil change interval, km (miles) | 30,000 (18,000) |
| Ignition system | |
| Spark plug | Bosch FQR8LEU2 |
| Spark plug gap | 0.85-0.95 mm (0.0334-0.0374 in) |
| Spark plug tightening torque | 25 Nm (2.55 kg·m; 18.45 ft·lb) |
Vehicle applications
| Model | Years Produced |
| Opel / Vauxhall Astra G | 2003-2006 |
| Opel / Vauxhall Corsa C | 2003-2009 |
| Opel / Vauxhall Astra H | 2004-2009 |
| Opel / Vauxhall Tigra B | 2004-2009 |
| Opel / Vauxhall Meriva | 2004-2009 |
