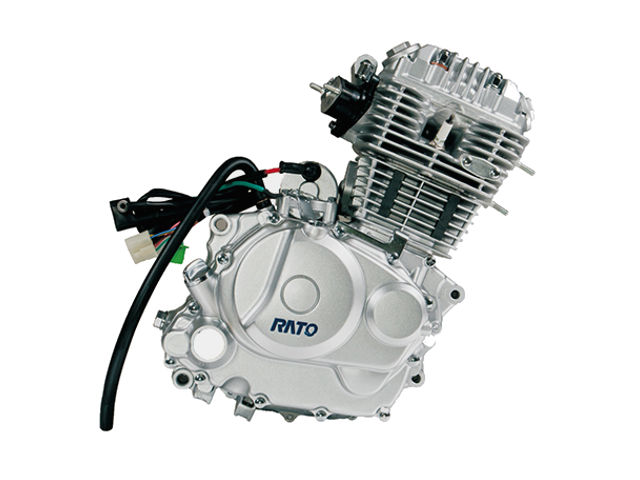

The Rato CB125 (RW162MJ) is a 124.1 ml (7.6 cu-in) single-cylinder air-cooled 4-stroke internal combustion vertical motorcycle engine from Rato CB-series, manufactured by Chongqing RATO Holding (Group) CO., LTD.
The Rato CB125 engine uses the dual-cam valve for valve gear with chain transmission to improve the efficiency of valve gear and reduce the noise of complete machine; increased the diameter of the left crankshaft; capacitance discharge ignition system and electric or kick start. The engine is equipped with a 5-speed gearbox.
The engine cylinder bore is 56.5 mm (2.22 in) and piston stroke is 49.5 mm (1.95 in). The CB125 (RW162MJ) produced 10.2 PS (7.5 kW; 10.0 HP) at 8,500 rpm of maximum horsepower and 8.5 N·m (0.87 kg·m, 6.27 ft·lb) of torque at 7,000 rpm.
General information
| Engine Specifications | |
| Model | CB125 (RW162MJ) |
| Type | Vertical, four-stroke, single cylinder |
| Displacement | 124.1 ml (7.6 cu-in) |
| Max. horsepower | 10.2 PS (7.5 kW; 10.0 HP) at 8,500 rpm |
| Max. torque (crank PTO) | 8.5 N·m (0.87 kg·m, 6.27 ft·lb) at 7,000 rpm |
| Clutch method | Manual wet multi-plate |
| Gearshift method | 5-speed gearshift |
| Cooling system | Forced-air |
| Ignition system | Capacitance discharge ignition (CDI) |
| Lubricating system | Splash |
| Starting system | Electric / kick |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel consumption | 354 g/kw·h |
Dimensions and Weight
| Rato CB125 (RW162MJ) | |
| Length, mm (in) | 355 (14.0) |
| Width, mm (in) | 320 (12.6) |
| Height, mm (in) | 420 (16.5) |
| Dry weight, kg (lb) | 30 (66.1) |
Service Information
| Oil system | |
| Oil capacity | 1.0 L |
| Ignition system | |
| Spark plug | D8RTC |
