Shibaura T853A

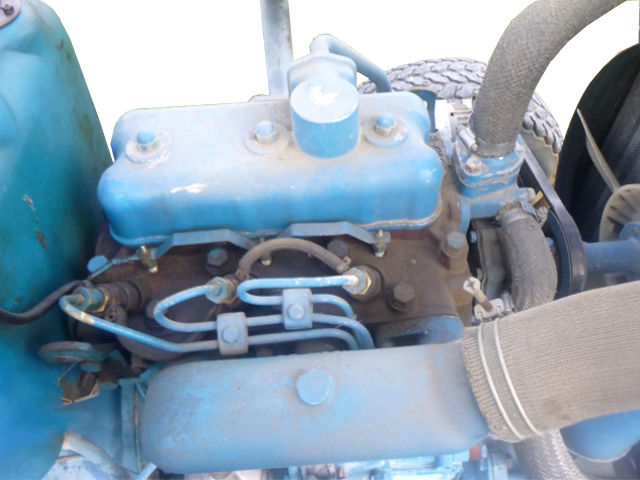

The Shibaura T853A is a 1,702 cc (103.8 cu·in) straight-three, liquid-cooled, naturally aspirated diesel engine manufactured by Shibaura.

A 85.0 mm (3.35 in) cylinder bore and 100.0 mm (3.94 in) piston stroke give the Shibaura T853A diesel engine a total of 1,429 cc (103.8 cu·in) of displacement. The compression ratio rating is 21.0:1.

This engine is equipped with glow plugs and oil bath type air cleaner.

The Shibaura T853A diesel engine produced 32.5 PS (23.9 KW; 32.0 HP) at 2,500 rpm of gross horsepower and 96.1 Nm (9.8 kg·m; 70.9 lbf·ft) at 2,000 rpm of peak torque.

The breakdown of the engine code is as follows:

T – Engine series
85 – 85.0 mm of cylinder bore
3 – Three cylinders

General information

Engine Specifications
Engine code	T853A
Layout	Straight-3, vertical diesel engine
Fuel type	Diesel fuel No.2-D
Production	–
Displacement	1.7 L, 1,702 cm³ (103.8 cu in)
Max. Horsepower (gross)	32.5 PS (23.9 KW; 32.0 HP) at 2,500 rpm
Torque output	96.1 Nm (9.8 kg·m; 70.9 lbf·ft) at 2,000 rpm
Injection type	Indirect injection
Cooling system	Liquid-cooled
Fuel system	Fuel injection pump
Starting system	Electric starting
Starting support device	Glow plug in combustion chamber
Power adder	None
Firing order	1-2-3

Cylinder block

Cylinder block
Compression ratio:		21.0:1
Cylinder bore:		85.0 mm (2.35 in)
Piston stroke:		100.0 mm (3.94 in)
Number of piston rings (compression / oil):		2 / 1

Cylinder head

Cylinder head
Valve Arrangement:		–
Valves:		6 (2 valves per cylinder)
Valve seat angle:	INTAKE	45°
	EXHAUST	45°
Valve face angle:	INTAKE	45°
	EXHAUST	45°

Tightening torque

Tightening torque specs
Connecting rod caps:	78.0-83.0 Nm (8-8.5 kgf·m; 57.6-61.3 ft·lb)
Main bearing holders:	71.0-81.0 Nm (7.2-8.3 kgf·m; 52.4-59.8 ft·lb)
Crankshaft rear plate:	46.0-54.0 Nm (4.7-5.5 kgf·m; 33.9-39.9 ft·lb)
Crankshaft pulley:	49.0-59.0 Nm (5-6 kgf·m; 36.2-43.5 ft·lb)
Flywheel:	56.0-69.0 Nm (5.7-7.0 kgf·m; 41.3-50.9 ft·lb)
Cylinder head:	95.0 Nm (9.7 kgf·m; 70.1 ft·lb)

Maintenance data

Engine speed
Governed speed	Low Idle: 750-850 rpm High Idle: 2,650-2,700 rpm
Valve clearance
Intake valve	0.30 mm (0.012 in)
Exhaust valve	0.30 mm (0.012 in)
Injector opening pressure
Standard	11,760 kPa (1705 psi)
Injection timing
Standard	23.5-24.5° BTDC
Oil system
Recommended engine oil	CD or CE
SAE Viscosity Number	SAE 10W-30, 10W-40
Engine oil capacity	6.5 liters (6.87 US.qts, 5.72 Imp. qts)
Electrical system
Alternator:	12V
Volts:	12V
Ground polarity:	Negative

Applications

The Shibaura T853A engine is used on the following tractors

Model	Years Produced
Ford 1910	1983-1986
