Subaru-Robin EX13D

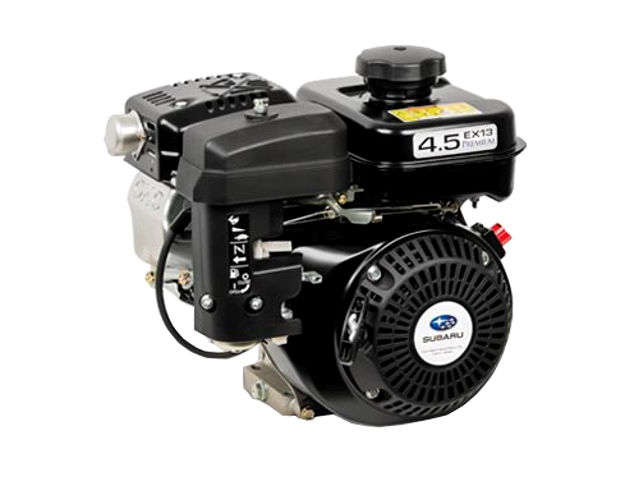

Subaru-Robin EX13DThe Subaru-Robin EX13D is a 126 cc (7.69 cu-in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine manufactured by Industrial Products division of Subaru Corporation for general-purpose applications.

The Subaru-Robin EX13D engine has an OHС (overhead camshaft) design; high compression ratio for better fuel efficiency; horizontal draft, float type carburetor; recoil starter and transistorized magneto ignition system.

Cylinder bore is 58.0 mm (2.28 in) and piston stroke is 48.0 mm (1.89 in), compression ratio rating is 8.5:1. The engine produced 2.9 4.4 PS (3.2 kW; 4.3 HP) at 4,000 rpm of maximum horsepower and 2.6 PS (1.9 kW; 2.5 HP) at 3,000 rpm or 3.0 PS (2.2 kW; 3.0 HP) at 3,600 rpm of continuous output power. Maximum torque is 8.1 N·m (0.8 kg·m, 6 ft·lb) at 2,500 rpm.

General information

Engine Specifications
Model EX13D
Type 4-stroke, OHC, single cylinder
Displacement 126 cm 3 (7.7 cu-in)
Max. horsepower 4.4 PS (3.2 kW; 4.3 HP) at 4,000 rpm
Max. torque (crank PTO) 8.1 N·m (0.8 kg·m, 6 ft·lb) at 2,500 rpm
Carburetor Horizontal draft, float type carburetor
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel tank capacity 2.7 L (0.71 US. gal. 0.59 Imp. gal.)
Fuel consumption 367 g/kWH
PTO shaft rotation Counterclockwise (from PTO shaft side)

Cylinder Block and Head

The EX13D has cast iron cylinder sleeve, ball bearing supported forged steel crankshaft, improved piston design. The piston has two compression rings and one oil ring.

Cylinder block
Compression ratio: 8.5:1
Bore x Stroke 58.0 X 48.0 mm (2.28 x 1.89 in)
Sleeve internal diameter 58.000-58.020 mm (2.2835-2.2842 in)
Piston skirt outer diameter 57.980-58.000 mm (2.2827-2.2835 in)
Number of piston rings (compression / oil): 2 / 1
Ring side clearance Top 0.035-0.080 mm (0.0014-0.0031 in))
Second 0.035-0.080 mm (0.0014-0.0031 in)
Oil 0.020-0.075 mm (0.0008-0.003 in)
Ring end gap Top/Second 0.15-0.35 mm (0.0059-0.0138 in)
Oil 0.20-0.40 mm (0.0079-0.0157 in)
Connecting rod small end ID 13.010-13.020 mm (0.5122-0.5126 in)
Connecting rod big end ID 30.000-30.016 mm (1.1811-1.1817 in)
Piston pin outer diameter 12.991-13.009 mm (0.5115-0.5122 in)
Crankshaft crankpin outer diameter 29.967-29.980 mm (1.1798-1.1803 in)
Crankshaft main journal diameter №1 27.988-24.997 mm (1.1019-0.9841 in)
№2 24.988-24.997 mm (0.9838-0.9841 in)
Cylinder Head
Warpage (limit) 0.10 mm (0.004 in)
Valve Arrangement: OHC
Valves: 2
Stem outer diameter (standard): INTAKE 5.440-5.455 mm (0.2142-0.2148 in)
EXHAUST 5.425-5.445 mm (0.2136-0.2144 in)
Valve spring free length: 27.4 mm (1.0787 in)
Camshaft lobe height: INTAKE 29.028-29.128 mm (1.1428-1.1468 in)
EXHAUST 29.028-29.128 mm (1.1428-1.1468 in)

Tightening torque specs

Tightening torque specs
Cylinder head M8 × 68 flange bolt (Re-use) 25-27 Nm; 2.5-2.7 kg·m; 18.1-19.5 ft·lb
Cylinder head M8 × 68 flange bolt (New) 28-30 Nm; 2.8-3.0 kg·m; 20.3-21.7 ft·lb
Cylinder head M8 × 35 flange bolt 17-19 Nm; 1.7-1.9 kg·m; 12.3-13.7 ft·lb
Connecting rod bolt 13-15 Nm; 1.3-1.5 kg·m; 9.4-10.8 ft·lb
Main bearing cover bolts 22-24 Nm; 2.2-2.4 kg·m; 16.2-17.7 ft·lb
Flywheel nut 59-64 Nm; 5.9-6.4 kg·m; 42.7-46.3 ft·lb

Service Information

Engine
Cylinder compression 3.5 kg/cm2
Valve clearance
Intake valve clearance 0.12-0.15 mm (0.0047-0.0059 in)
Exhaust valve clearance 0.12-0.15 mm (0.0047-0.0059 in)
Oil system
Oil type 4-stroke or an equivalent (SE or SF)
Recommended oil SAE 10W-30
Oil capacity 0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Ignition system
Spark plug NGK: BR-6HS;
CHAMPION: RL86C
Spark plug gap 0.6-0.7 mm (0.0236-0.0276 in)
Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
