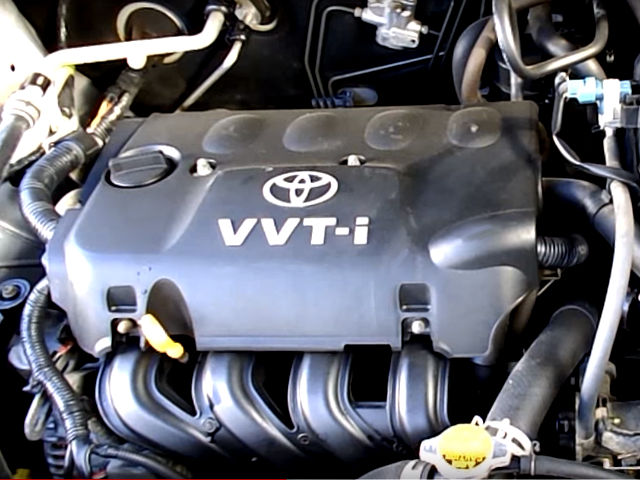

The Toyota 2NZ-FE is a 1.3 l (1,298 cc, 79.21 cu-in) straight-four 4-stroke natural aspirated gasoline engine from Toyota NZ-family. The 2NZ-FE engine was manufactured on Kamigo Plant (Aichi Prefecture, Japan) from 1999.
The 2NZ-FE engine features a lightweight aluminum block and aluminum cylinder head with dual overhead camshafts (DOHC) and four valves per cylinder (16 in total). Compression ratio rating is 10.5:1. It has a 75.0 mm (2.95 in) cylinder bore and 73.5 mm (2.89 in) piston stroke. The Toyota 2NZ-FE engine has electronic fuel injection system, VVT-i (Variable Valve Timing with intelligence) system on the intake side, ETCS-i (Electronic Throttle Control System-intelligent) and DIS-4 ignition system with individual ignition coil for each spark plug.
The 2NZ-FE engine was redesigned in 2003 due to the introduction of Euro IV emissions regulations. The following changes were made to the engine:
- Piston shape was changed;
- The shape of the exhaust manifold was modified;
- Construction of the three-way catalytic converter was changed;
- Three-way catalytic converter was fitted;
- The 16 tit ECU was changed to 32 bit.
The engine produced 85.7 PS (63 kW; 84.5 HP) at 6,000 rpm of maximum horsepower and 121 Nm (12.34 kg·m; 89.3 ft·lb) at 4,400 rpm of peak torque.
The breakdown of the engine code is as follows:
- 2 – 2-nd generation engine
- NZ – Engine family
- F – Economy narrow-angle DOHC
- E – Multi Point Fuel Injection
General information
Engine Specifications | |
Engine code | 2NZ-FE |
Layout | Four stroke, Inline-4 (Straight-4) |
Fuel type | Gasoline (petrol) |
Production | 1999- |
Displacement | 1.3 L, 1,298 cm3 (79.21 cu-in) |
Fuel system | Electronic Fuel Injection (EFI) |
Power adder | None |
Power output | 85.7 PS (63 kW; 84.5 HP) at 6,000 rpm |
Torque output | 121 Nm (12.34 kg·m; 89.3 ft·lb) at 4,400 rpm |
Firing order | 1-3-4-2 |
Dimensions (L x W x H): | – |
Weight | A/T: 84.8 kg (187 lb.), M/T: 92.5 kg (203.9 lb.) |
Cylinder block
The Toyota 2NZ-FE has an aluminum cylinder block with five bearing support system and thin-walled cast iron liners. It has a 75.0 mm (2.95 in) cylinder bore and 73.5 mm (2.89 in) piston stroke. The engine has a crankshaft with four balance weights and an integrated crankshaft position sensor.
The steel connecting rods for the 2NZ-FE engine has caps that are held by plastic region tightening bolts. The engine is equipped with aluminum alloy pistons, semi-floating type piston pins and low-tension rings (two compression and single oil control ring).
Cylinder block | ||
Cylinder block alloy | Aluminium | |
Compression ratio: | 10.5:1 | |
Cylinder bore: | 75.0 mm (2.95 in) | |
Piston stroke: | 73.5 mm (2.89 in) | |
Number of piston rings (compression / oil): | 2 / 1 | |
Number of main bearings: | 5 | |
Cylinder inner diameter (standard): | 75.000-75.013 mm (2.9527-2.9528 in) | |
Piston skirt diameter (standard): | 74.945-74.955 mm (2.9506-2.9510 in) | |
Piston pin outer diameter: | 18.001-18.004 mm (0.7087-0.7088 in) | |
Piston ring side clearance: | Top | 0.030-0.070 mm (0.0012-0.0027 in) |
Second | 0.020-0.060 mm (0.008-0.0024 in) | |
Oil | 0.070-0.150 mm (0.0027-0.0059 in) | |
Piston ring end gap: | Top | 0.22-0.32 mm (0.0086-0.0125 in) |
Second | 0.32-0.47 mm (0.0125-0.0185 in) | |
Oil | 0.10-0.35 mm (0.0039-0.0138 in) | |
Crankshaft journal diameter: | 45.988-46.000 mm (1.8105-1.8110 in) | |
Crankpin diameter: | 39.992-40.000 mm (1.5745-1.5748 in) |
Main bearing cap bolts tightening procedure and torque specs:
- Step 1: 22 Nm; 2.2 kg·m; 16.2 ft·lb
- Step 2: Turn all bolts 90°
After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.
Connecting rod bearing bolts
- Step 1: 15 Nm; 1.5 kg·m; 11 ft·lb
- Step 2: Turn bolts 90°
Crankshaft pulley bolt
- 128 Nm; 13.0 kg·m; 94.5 ft·lb
Drive plate (A/T) fixing bolts
- 88 Nm; 8.8 kg·m; 65 ft·lb
Cylinder head
The cylinder head is made of aluminum alloy which gives it good cooling efficiency. The engine has dual overhead camshafts, that are driven by a roller timing chain which has an 8.0 mm pitch and four valves per cylinder (16 valves in total). The timing chain is lubricated by engine oil from an oil jet. The engine has a pentroof type combustion chamber and cross-flow manifolds.
The 2NZ-FE used Variable Valve Timing with intelligence system (VVT-i) on the intake camshaft. Intake valves are 30.5 mm (1.20 in) in diameter, and the exhaust valves are 25.5 mm (1.00 in). The engine has an intake duration of 225 degrees and exhaust duration of 216 degrees. The 2NZ engine used special valve shims to adjust the valve clearance.
Cylinder head | ||
Valve Arrangement: | DOHC, chain drive | |
Valves: | 16 (4 valves per cylinder) | |
Valve head diameter: | INTAKE | 30.5 mm (1.20 in) |
EXHAUST | 25.5 mm (1.00 in) | |
Valve length: | INTAKE | 89.25 mm (3.5138 in) |
EXHAUST | 87.90 mm (3.4606 in) | |
Valve stem diameter: | INTAKE | 4.970-4.985 mm (0.1957-0.1963 in.) |
EXHAUST | 4.965-4.980 mm (0.1955-0.1961 in.) | |
Valve spring free length: | 45.05-45.15 mm (1.774-1.778 in.) | |
Camshaft cam height: | INTAKE | 44.617-44.717 mm (1.7566-1.7605 in.) |
EXHAUST | 44.046-44.146 mm (1.7340-1.7380 in.) | |
Outer camshaft journal diameter: | №1 | 34.449-34.465 mm (1.3563-1.3569 in.) |
Other journals diameter | 22.949-22.965 mm (0.9035-0.9041 in.) |
Head tightening procedure and torque specs:
- Step 1: 29 Nm; 3.0 kg·m; 22 ft·lb
- Step 2: Turn all bolts 90°
- Step 3: Turn all bolts another 90°
Camshaft timing sprocket
- 64 Nm; 6.5 kg·m; 47 ft-lb
Maintenance data
Valve clearance | |
Intake valve | 0.15-0.25 mm (0.006-0.010 in) |
Exhaust valve | 0.25-0.35 mm (0.010-0.014 in) |
Compression pressure | |
Standard | 14.0 kg/m2 / 200 rpm |
Minimun | 11.0 kg/m2 / 200 rpm |
Compression differential limit between cylinders | 1.0 kg/m2 / 200 rpm |
Oil system | |
Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
Recommended engine oil | 5W-20, 5W-30, 10W-30 |
Oil type API | SH or SJ |
Engine oil capacity (Refill capacity) |
With filter change 3.7 l Without filter change 3.4 l |
Oil change interval, km (miles) | 5,000-10,000 (3,000-6,000) |
Ignition system | |
Spark plug | DENSO: K16R-U11, NGK: KBR5EYA-11 |
Spark plug gap | 1.1 mm (0.043 in) |
Valve clearance adjustment data
Calculate the thickness of new adjusting valve lifter so valve clearance comes within specified values.
R = Thickness of removed valve lifter
N = Thickness of new valve lifter
M = Measured valve clearance
Intake:
N = R + [M – 0.20 mm (0.008 in)]
Exhaust:
N = R + [M – 0.30 mm (0.012 in)]
Valve lifters are available in 35 sizes to range from 5.06 mm (0.1992 in) to 5.74 mm (0.2259 in), in steps of 0.02 mm (0.0008 in).
Example (intake valve):
R = 5.10 mm
M = 0.52 mm
N = 5.10 + (0.52 – 0.20) = 5.42 mm.
Vehicle applications
Model | Years Produced |
Toyota Yaris | – |
Toyota Echo | – |
Toyota Vitz | – |
Toyota Vios | – |
Toyota Belta | – |
Toyota Platz | – |
Toyota Porte | – |
Toyota Corolla (E140), Pakistan | – |
Toyota Corolla (E170), Pakistan | – |
Toyota bB | – |
Toyota Ist | – |
Toyota Corolla (E120), JDM and Middle East | – |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
