Toyota 3C-TE

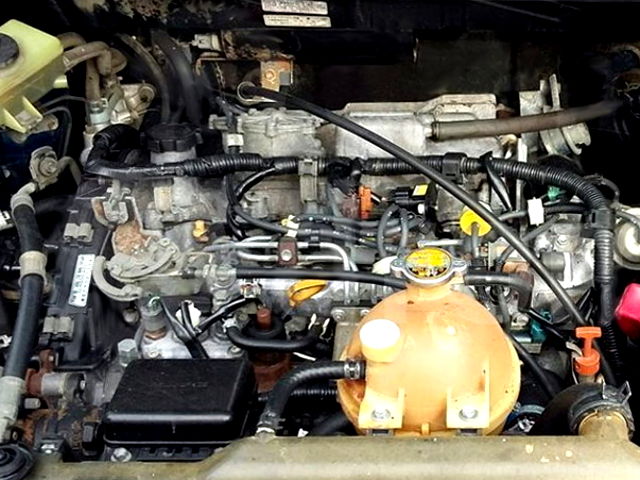

Toyota 3C-TEThe Toyota 3C-TE is a 2.2 L (2,184 cc, 133.3 cu·in) four-cylinders, four-stroke cycle water-cooled naturally turbocharged combustion diesel engine, from the Toyota C-family, manufactured by the Toyota Motor Corporation from 1998 to 2004.

The 3C-TE diesel engine has a cast-iron cylinder block with 86.0 mm (3.39 in) cylinder bores and a 94.0 mm (3.7 in) piston stroke. The compression ratio rating is 22.6:1.

The Toyota 3C-TE engine has an aluminum cylinder head with a belt-driven single overhead camshaft (SOHC) and 2 valves per cylinder (8 in total).

The Toyota 3C-TE engine produced from 94.0 PS (69.0 kW; 92.0 HP) at 4,400 rpm to 100.0 PS (74.0 kW; 99.0 HP) at 4,200 rpm of maximum output power and from 206.0 N·m (21 kg·m, 151.8 ft·lb) at 2,200 rpm to 226.0 N·m (23 kg·m, 166.6 ft·lb) at 2,600 rpm of peak torque.

The breakdown of the engine code is as follows:

  • 3 – 3-rd generation engine
  • C – Engine family
  • T – Turbocharged
  • E – Electronic fuel injection (EFI)

General information

Engine Specifications
Engine code 3C-TE
Layout Straight-4, vertical
Fuel type Diesel
Production 1998-2004
Displacement 2.2 L, 2,184 cc (133.3 cu in)
Injection Electronic fuel injection
Power adder Turbocharger
Horsepower net From 94.0 PS (69.0 kW; 92.0 HP) at 4,400 rpm
to 100.0 PS (74.0 kW; 99.0 HP) at 4,200 rpm
Torque output From 206.0 N·m (21 kg·m, 151.8 ft·lb) at 2,200 rpm
to 226.0 N·m (23 kg·m, 166.6 ft·lb) at 2,600 rpm
Firing order 1-3-4-2
Dimensions (L x H x W):
Weight

Cylinder block

The cylinder block is made of cast iron. The crankshaft has 8 counterbalance weights and supported by 5 bearings. An 86.0 mm (3.39 in) cylinder bore and 94.0 mm (3.7 in) piston stroke give the 3C engine a total of 2,184 cc of displacement. The compression ratio rating is 22.6:1.

Pistons are made of high temperature-resistant aluminum alloy. The piston pin is full floating. Each piston is fitted with two compression rings and a single oil ring. The top ring is made of stainless steel, the second ring is made of cast-iron.

Cylinder block
Cylinder block alloy Cast-iron
Compression ratio: 22.6:1
Cylinder bore: 86.0 mm (3.39 in)
Piston stroke: 94.0 mm (3.7 in)
Number of piston rings (compression / oil): 2/1
Number of main bearings: 5
Cylinder bore inner diameter: 86.000-86.001 mm (3.3858-3.3859 in)
Piston skirt diameter 85.883-85.893 mm (3.3812-3.3816 in)
Piston ring side clearance: Top 0.062-0.111 mm (0.0024-0.0044 in)
Second 0.070-0.110 mm (0.0028-0.0043 in)
Oil 0.030-0.070 mm (0.0012-0.0028 in)
Piston ring end gap: Top 0.270-0.390 mm (0.0106-0.0154 in)
Second 0.400-0.450 mm (0.0157-0.0177 in)
Oil 0.200-0.400 mm (0.0079-0.0157 in)
Piston pin outer diameter 27.000-27.012 mm (1.063-1.0635 in))
Crankshaft main journal diameter: 56.985-57.000 mm (2.2435-2.2441 in)
Crankpin diameter: 50.482-50.500 mm (1.9877-1.9882 in)

Cylinder head

Cylinder head
Cylinder head alloy Aluminium
Valve Arrangement: SOHC, belt driven
Valves: 8 (2 valves per cylinder)
Intake valves diameter:
Exhaust valves diameter:
Intake valves length: 105.70 mm (4.1614 in)
Exhaust valves length: 105.35 mm (4.1476 in)
Intake valve stem diameter: 7.975-7.990 mm (0.314-0.3146 in)
Exhaust valves stem diameter: 7.960-7.975 mm (0.3134-0.314 in)
Valve spring free length: 47.5 mm (1.8701 in)
Camshaft journal diameter: 27.979-27.995 mm (1.1015-1.1022 in)
Camshaft lobe height (intake): LiteAce / TontAce: 46.94 mm (1.8480 in)
Othres: 47.34 mm (1.8638 in)
Camshaft lobe height (exhaust): 48.35 mm (1.9035 in)

Head tightening procedure and torque specs:

  • Step 1: 44 Nm; 4.5 kg·m; 33 ft·lb
  • Step 2: Turn all bolts 90°
  • Step 3: Turn all bolts another 90°

Maintenance data

Valve clearance *
Intake valve 0.20-0.30 mm (0.0079-0.0118 in)
Exhaust valve 0.25-0.35 mm (0.0098-0.0138 in)
Compression pressure
Standard 30.0 bar / 250 rpm
Minimun 25.0 bar / 250 rpm
Compression differential limit between cylinders 5.0 bar / 250 rpm
Oil system
Oil type: API: CE or CF
Recommended oil: SAE 5W-30, 10W-30, 15W-40
Engine oil capacity With oil filter change: 5.1 L (5.39 US. qt, 4.49 Imp. qt.)
Oil change interval: 10,000 km (6,000 miles)

* – Valve lifters are available in 25 sizes to range from 2.20 mm (0.0866 in) to 3.40 mm (0.1338 in), in steps of 0.05 mm (0.0020 in).

Vehicle applications

Model Years Produced
Toyota Caldina (CT216) 1998-2002
Toyota Carina (CT211/216) 1998-2001
Toyota Corona (CT211/216) 1997-2001
Toyota Estima (CXR10/11/20/21) 1993-1999
Toyota Gaia (CXM10) 1998-2004
Toyota Ipsum (CXM10) 1997-2001
Toyota Picnic (CXM10) 1997-2001
