Zongshen 182F(E)

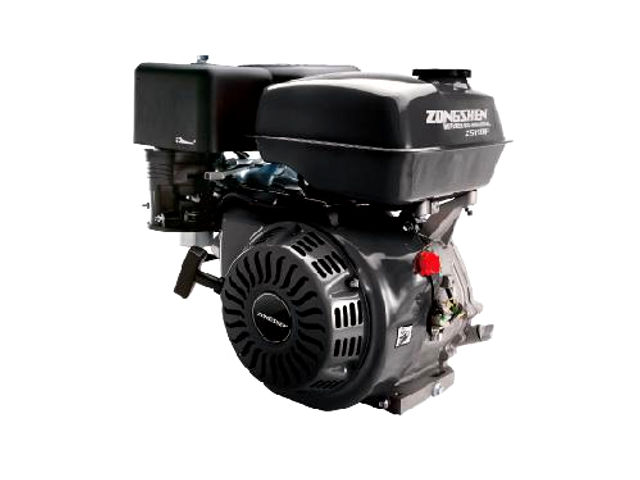

Zongshen 182F(E)The Zongshen 182F(E) is a 338 cc, (20.63 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine manufactured by Zongshen Power Co. for general-purpose applications.

The Zongshen 182F(E) engine has an overhead valve (OHV) design, carburetor fuel system, transistorized ignition system, and a recoil starter or electric starter. The Zongshen 182F(E) engine a compression ratio rating is 8.3:1. An 82.0 mm (3.23 in) cylinder bore and 64.0 mm (2.52 in) piston stroke give the 182F(E) motor a total of 338 cc of displacement.

The Zongshen ZS 182F(E) produced 9.2 PS (6.8 kW; 9.0 HP) at 3,600 rpm of maximum output power and 20.1 N·m (2 kg·m, 14.8 ft·lb) of maximum torque.

General information

Engine Specifications
Model BT 182F(E)
Type 4-stroke, OHV, single cylinder
Displacement 338 cm2, (20.63 cu·in)
Max. horsepower 9.2 PS (6.8 kW; 9.0 HP) at 3,600 rpm
Max. torque 20.1 N·m (2 kg·m, 14.8 ft·lb)
Fuel system Carburetor
Cooling system Forced-air
Ignition system Transistorized
Lubricating system Splash system
Starting system 182F – Recoil starter
182FE – Electric staretr
Fuel tank capacity 5.2 L (1.37 US. gal. 1.14 Imp. gal.)
Fuel consumption 375 g/kWh
PTO shaft rotation Counterclockwise (from PTO shaft side)

Dimensions and Weight

Zongshen ZS 182F(E)
Length, mm (in) 460 (18.1)
Width, mm (in) 405 (15.9)
Height, mm (in) 430 (16.9)
Dry weight, kg (lb) 31.0 (68.1)

Maintenance data

Engine
Maximum speed: 3,900 rpm
Idle speed: 1,800±200 rpm
Valve clearance
Intake valve 0.10-0.15 mm (0.004-0.006 in)
Exhaust valve 0.15-0.20 mm (0.006-0.008 in)
Oil system
Oil type 4-stroke engines oil
Recommended oil 10W-30
Oil capacity 1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Ignition system
Ignition timing 25°±2° B.T.D.C. (Fixed)
Spark plug gap 0.6-0.8 mm (0.024-0.031 in)
Spark plug torque 20 N·m; 2.0 kg·m; 14.7 ft·lb
