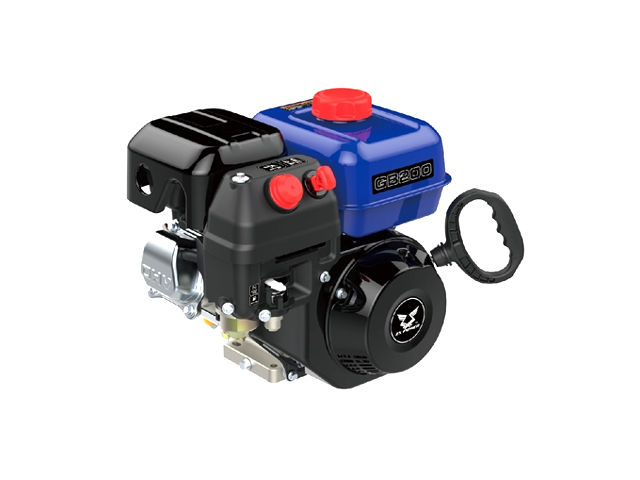

The Zongshen GB200A is a 196 cc, (11.96 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine, from GB-series manufactured by Zongshen Power Co. for snow thrower.
The Zongshen GB200A engine has an overhead valve (OHV) design, carburetor fuel system, transistorized ignition system, and a recoil starter. The cylinder bore and the piston stroke is 68.0 mm (2.68 in) and 54.0 mm (2.13 in), respectively.
The Zongshen GB200A produced 5.7 PS (4.2 kW; 5.6 HP) at 3,600 rpm of maximum output power.
General information
Engine Specifications | |
Model | GB200A |
Type | 4-stroke, OHV, single cylinder |
Displacement | 196 cm2, (11.96 cu·in) |
Max. horsepower | 5.6 PS (4.2 kW; 5.5 HP) at 3,600 rpm |
Max. torque | – |
Fuel system | Carburetor |
Cooling system | Forced-air |
Ignition system | Transistorized |
Lubricating system | Splash system |
Starting system | Recoil starter |
Fuel tank capacity | 3.8 L |
Fuel consumption | 395 g/kWh |
PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Maintenance data
Engine | |
Maximum speed: | 3,600 rpm |
Oil system | |
Oil type | 4-stroke engines oil |
Recommended oil | 5W-30 |
Oil capacity | 0.6 l (0.6 US gal. 0.5 Imp. gal.) |
Ignition system | |
Spark plug gap | 0.6-0.8 mm (0.024-0.031 in) |
Spark plug torque | 20 N·m; 2.0 kg·m; 14.7 ft·lb |
