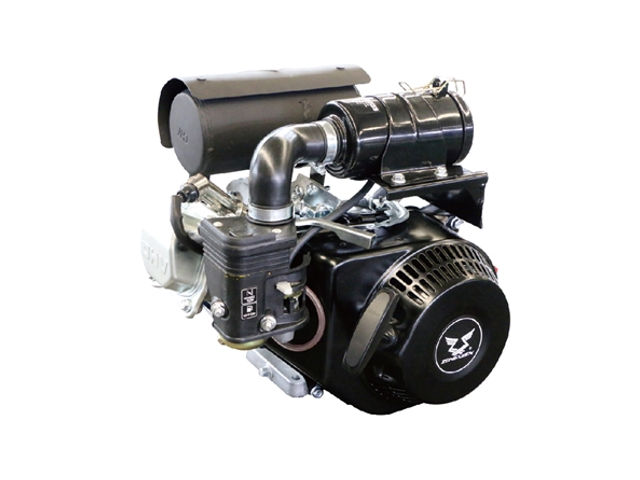

The Zongshen GB200H is a 196 cc, (11.96 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine, from GB-series manufactured by Zongshen Power Co. for rammers.
The Zongshen GB200H engine has an overhead valve (OHV) design, carburetor fuel system, transistorized ignition system, and a recoil starter. Cylinder bore and piston stroke are 68.0 mm (2.68 in) and 54.0 mm (2.13 in), respectively.
The Zongshen ZS GB200 produced 5.3 PS (3.9 kW; 5.2 HP) at 3,600 rpm of maximum output power and 11.0 N·m (1.1 kg·m, 8.1 ft·lb) of maximum torque.
General information
| Engine Specifications | |
| Model | GB200H |
| Type | 4-stroke, OHV, single cylinder |
| Displacement | 196 cm2, (11.96 cu·in) |
| Max. horsepower | 5.3 PS (3.9 kW; 5.2 HP) at 3,600 rpm |
| Max. torque | 11.0 N·m (1.1 kg·m, 8.1 ft·lb) |
| Fuel system | Carburetor |
| Cooling system | Forced-air |
| Ignition system | Transistorized |
| Lubricating system | Splash system |
| Starting system | Recoil starter |
| Fuel tank capacity | – |
| Fuel consumption | 395 g/kWh |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Dimensions and Weight
| Zongshen ZS GB200H | |
| Length, mm (in) | 345 (13.6) |
| Width, mm (in) | 315 (12.4) |
| Height, mm (in) | 330 (13.0) |
| Dry weight, kg (lb) | 15.8 kg (34.8 lbs) |
Maintenance data
| Engine | |
| Maximum speed: | 3,900 rpm |
| Idle speed: | 1,440±150 rpm |
| Oil system | |
| Oil type | 4-stroke engines oil |
| Recommended oil | 10W-30 |
| Oil capacity | 0.6 l (0.6 US gal. 0.5 Imp. gal.) |
| Ignition system | |
| Spark plug gap | 0.6-0.8 mm (0.024-0.031 in) |
| Spark plug torque | 20 N·m; 2.0 kg·m; 14.7 ft·lb |
