Zongshen GB420S

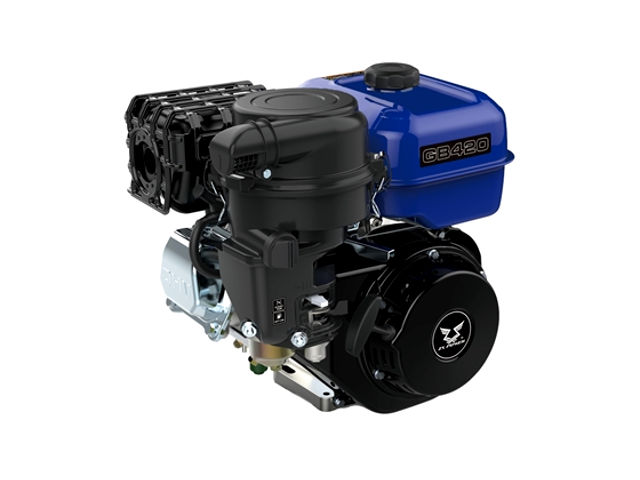

Zongshen GB420SThe Zongshen GB420S is a 420 cc, (25.63 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine, from GB-series manufactured by Zongshen Power Co. for general-purpose applications.

The Zongshen GB420S engine has an overhead valve (OHV) design, carburetor fuel system, transistorized ignition system, and recoil or electric starter.

Cylinder bore and piston stroke are 90.0 mm (3.54 in) and 66.0 mm (2.6 in), respectively. The ZS GB420S produced 12.2 PS (9.0 kW; 12.1 HP) at 3,600 rpm of maximum output power and 27 N·m (2.8 kg·m, 19.9 ft·lb) of maximum torque.

General information

Engine Specifications
Model GB420S
Type 4-stroke, OHV, single cylinder
Displacement 420 cm2, (25.63 cu·in)
Max. horsepower 12.2 PS (9.0 kW; 12.1 HP) at 3,600 rpm
Max. torque 27 N·m (2.8 kg·m, 19.9 ft·lb)
Fuel system Carburetor
Cooling system Forced-air
Ignition system Transistorized
Lubricating system Splash system
Starting system Recoil or electric starter
Fuel tank capacity 7.5 L (1.98 US. gal. 1.65 Imp. gal.)
Fuel consumption
PTO shaft rotation Counterclockwise (from PTO shaft side)

Dimensions and Weight

Zongshen GB420S
Length, mm (in) 456 (18.0)
Width, mm (in) 355 (14.0)
Height, mm (in) 459 (18.1)
Dry weight, kg (lb) 30.5 kg (67.2 lbs)

Maintenance data

Engine
Maximum speed: 3,600 rpm
Idle speed: 1,600±150 rpm
Oil system
Oil type 4-stroke engines oil
Recommended oil 10W-30
Oil capacity 1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Ignition system
Spark plug gap 0.6-0.8 mm (0.024-0.031 in)
Spark plug torque 20 N·m; 2.0 kg·m; 14.7 ft·lb
