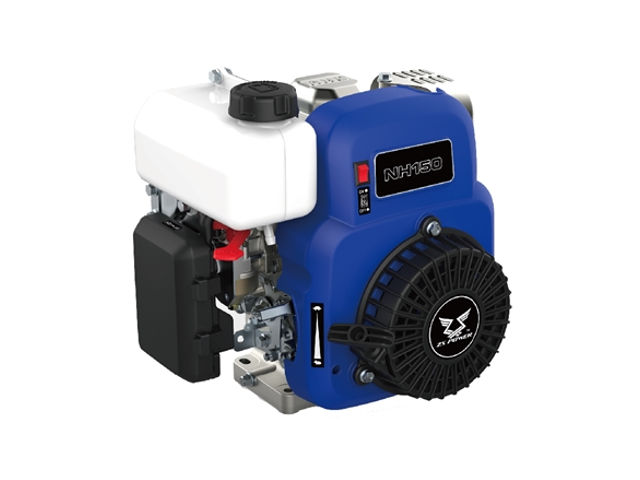

The Zongshen NH150 is a 149 cc, (9.09 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine, from NH-series manufactured by Zongshen Power Co.
It has a 65.0 mm (2.56 in) cylinder bore and 45.0 mm (1.77 in) piston stroke. Compression ratio rating is 8.3:1.
The Zongshen NH150 produced 3.4 PS (2.5 kW; 3.4 HP) at 3,600 rpm of maximum output power and 7.2 Nm (0.73 kg·m; 5.31 ft·lb) at 3,600 rpm of maximum torque.
General information
Engine Specifications | |
Model | NH150 |
Type | 4-stroke, OHV, single cylinder |
Displacement | 149 cm2, (9.09 cu·in) |
Max. horsepower | 3.4 PS (2.5 kW; 3.4 HP) at 3,600 rpm |
Max. torque | 7.2 Nm (0.73 kg·m; 5.31 ft·lb) |
Fuel system | Carburetor |
Cooling system | Forced-air |
Ignition system | – |
Lubricating system | Splash system |
Starting system | Recoil starter |
Fuel tank capacity | 0.9 L (0.24 US. gal. 0.2 Imp. gal.) |
Fuel consumption | 400 g/kWh |
PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Dimensions and Weight
Zongshen NH150 | |
Length, mm (in) | 333 (13.1) |
Width, mm (in) | 241 (9.5) |
Height, mm (in) | 322 (12.7) |
Dry weight, kg (lb) | 10.0 kg (22 lbs) |
Maintenance data
Engine | |
Maximum speed: | 4,000 rpm |
Idle speed: | 1,800±200 rpm |
Valve clearance | |
Intake valve | 0.10-0.15 mm (0.004-0.006 in) |
Exhaust valve | 0.15-0.20 mm (0.006-0.008 in) |
Oil system | |
Oil type | 4-stroke engines oil |
Recommended oil | 10W-30 |
Oil capacity | 0.5 L (0.53 US. qt, 0.44 Imp. qt.) |
Ignition system | |
Spark plug gap | 0.6-0.8 mm (0.024-0.031 in) |
Spark plug torque | 20 N·m; 2.0 kg·m; 14.7 ft·lb |
